Ignite Heating Solutions: Industrial-Grade Durability & Performance

Ignite Manufacturing delivers a complete line of industrial heaters and heating equipment built for performance in the toughest environments. Engineered with precision and backed by years of industry expertise, every Ignite product is designed for reliability, fuel efficiency, and operator safety. From indirect oil- and gas-fired models to high-output propane torches, our solutions combine rugged construction with easy serviceability, helping you keep projects on schedule and operations running smoothly, no matter the conditions.

CATEGORIES

Self-Contained Heat Trailers

Indirect Fired Heaters

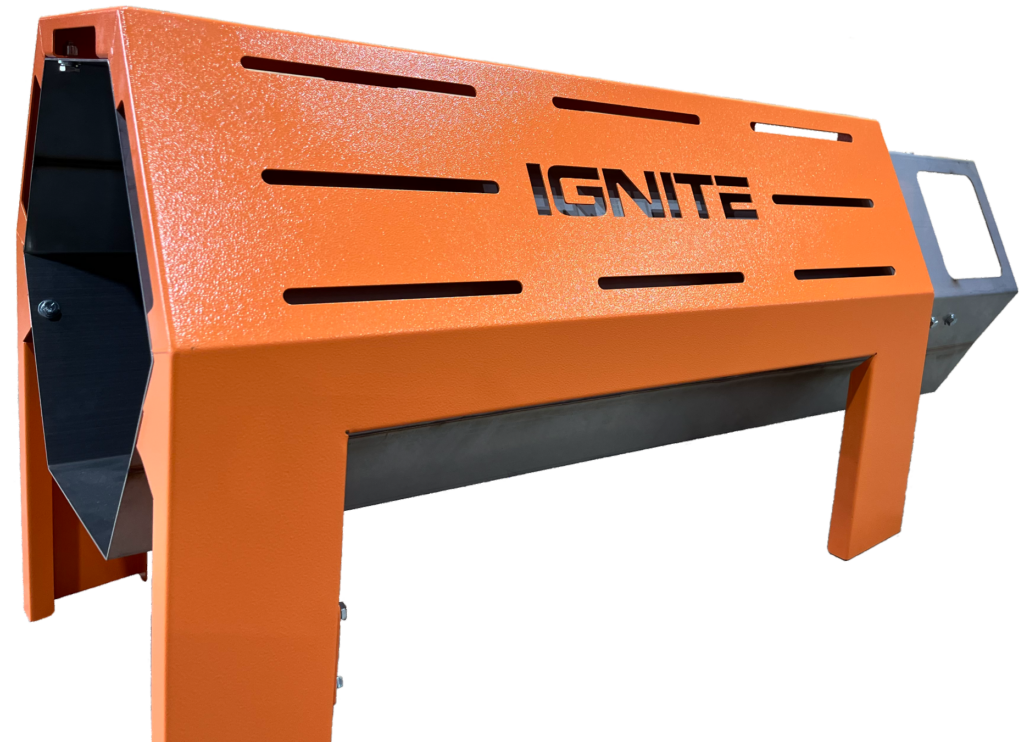

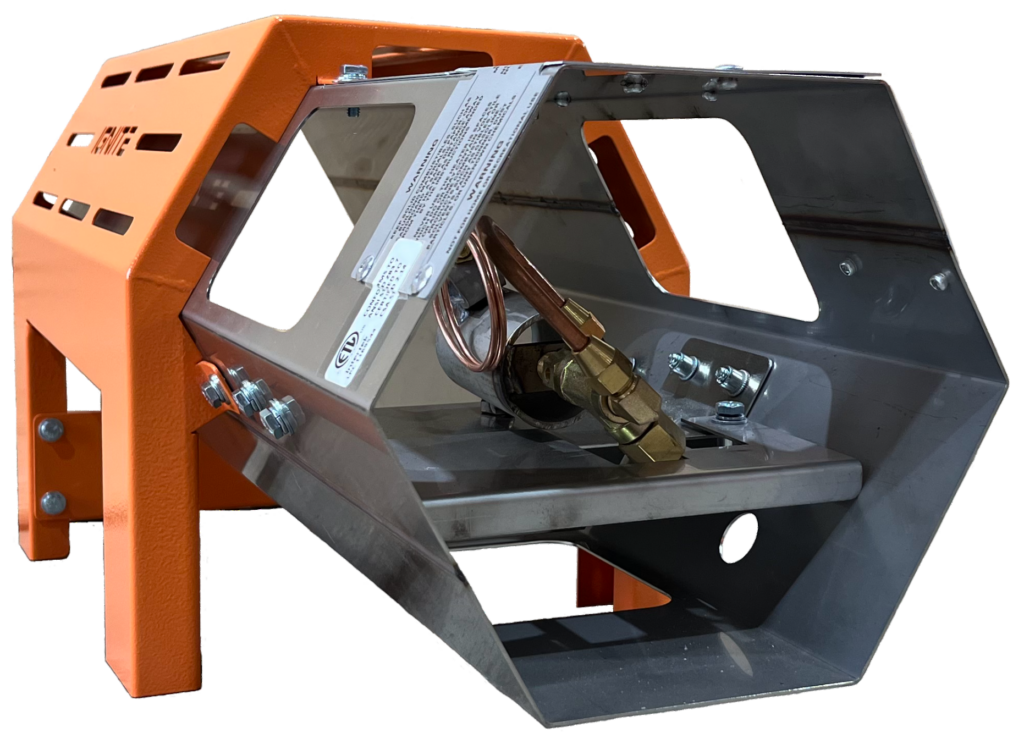

Direct Fired Heaters

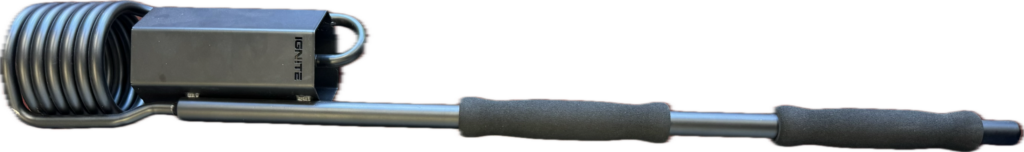

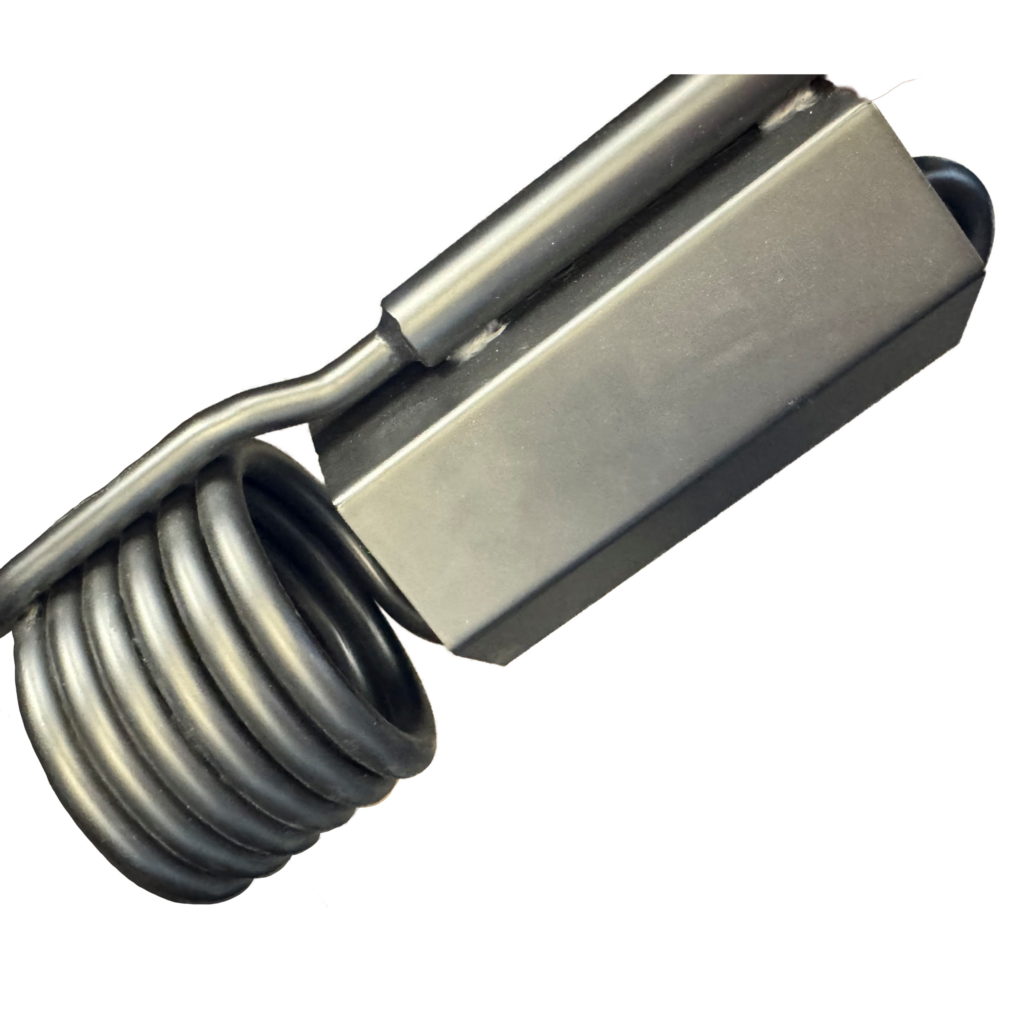

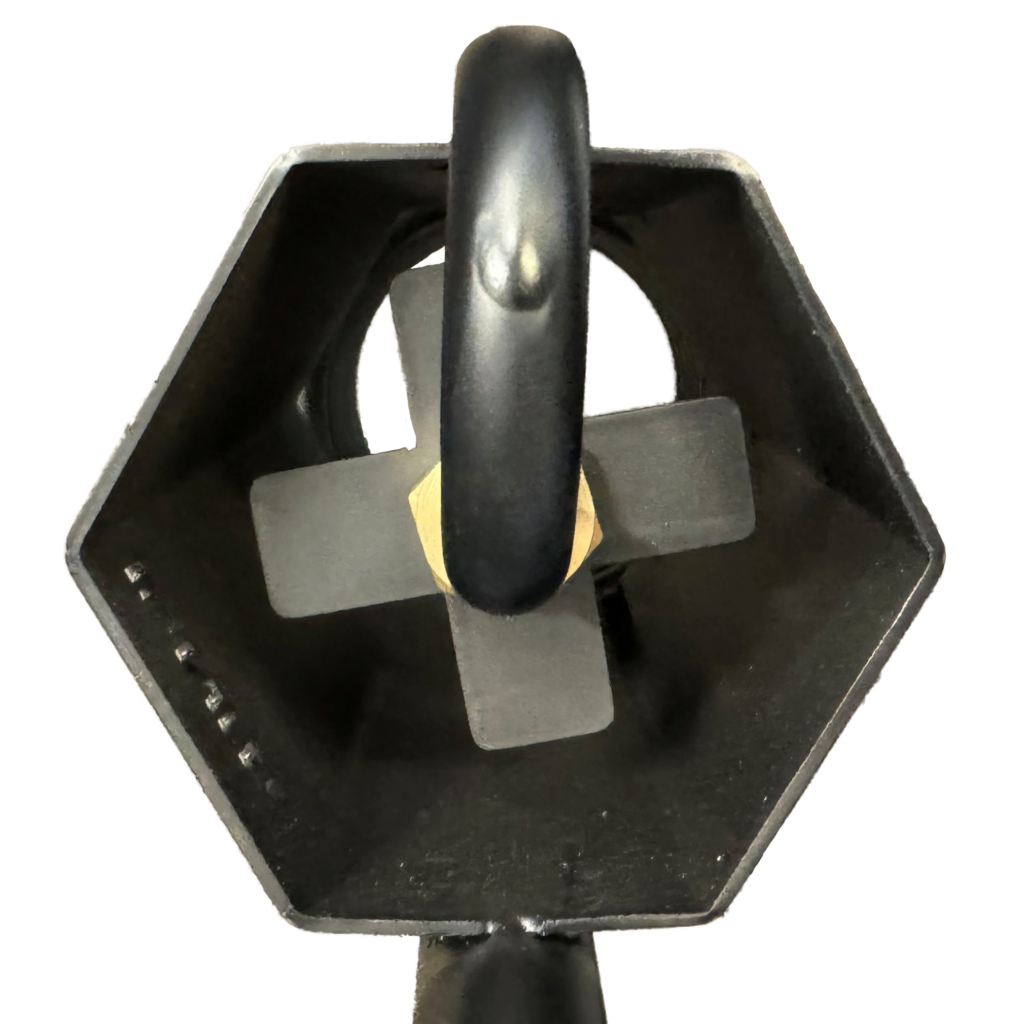

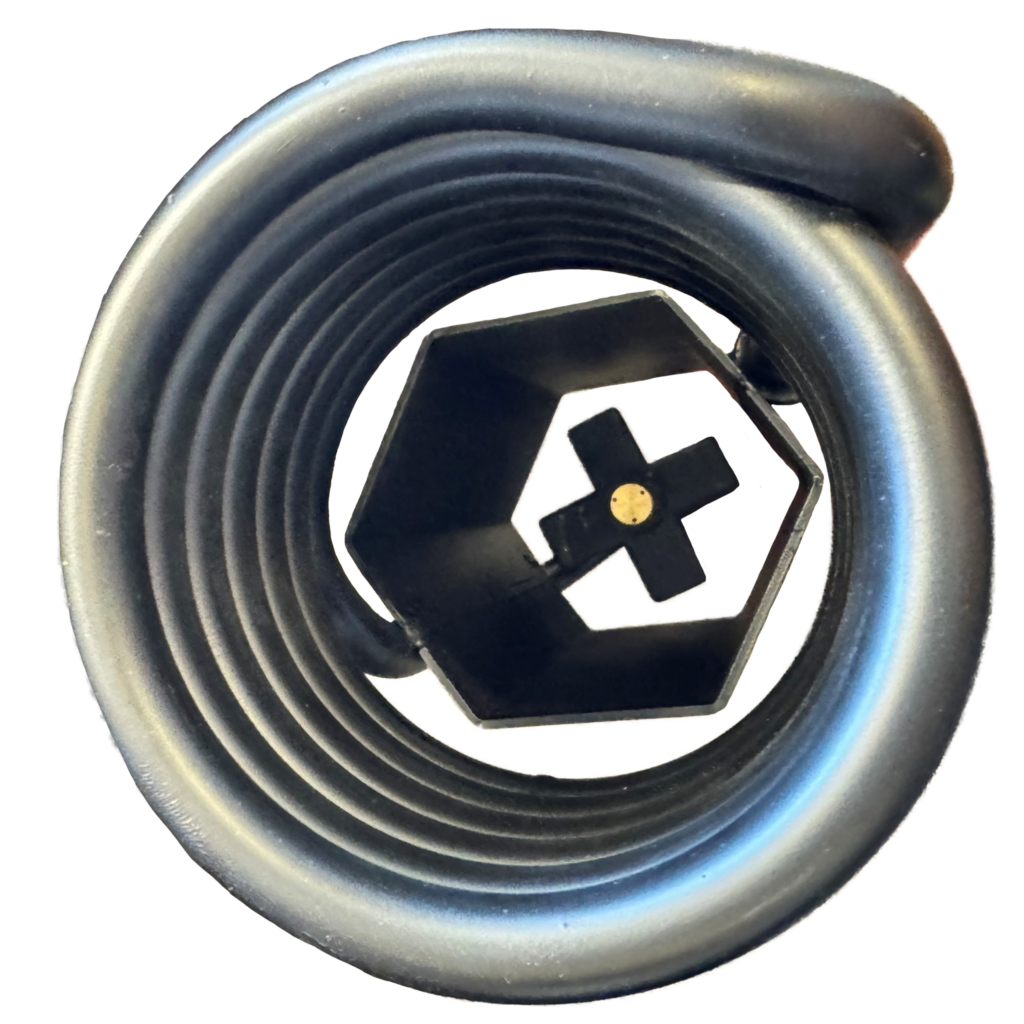

Torches

Self-Contained Heat Trailers

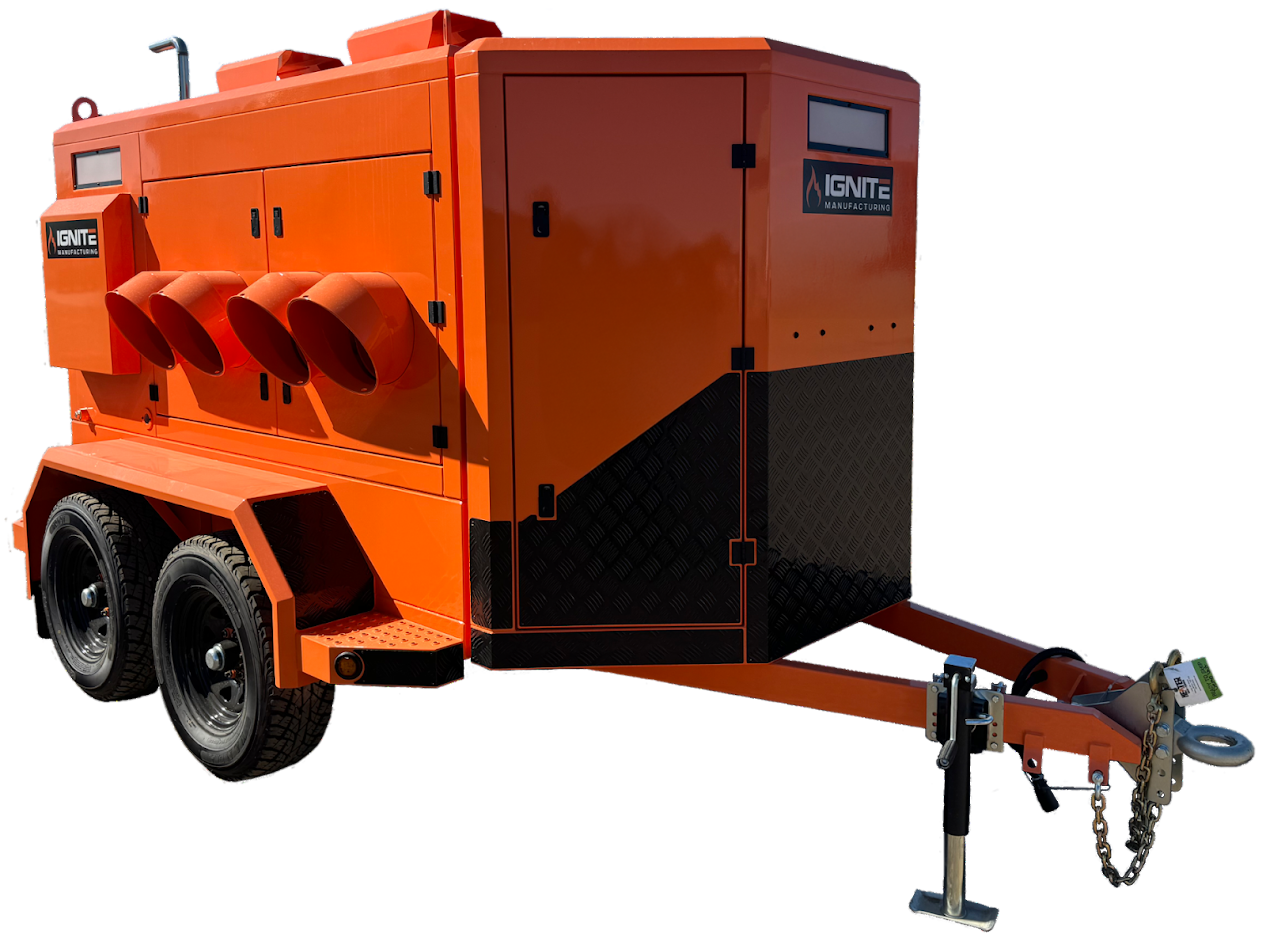

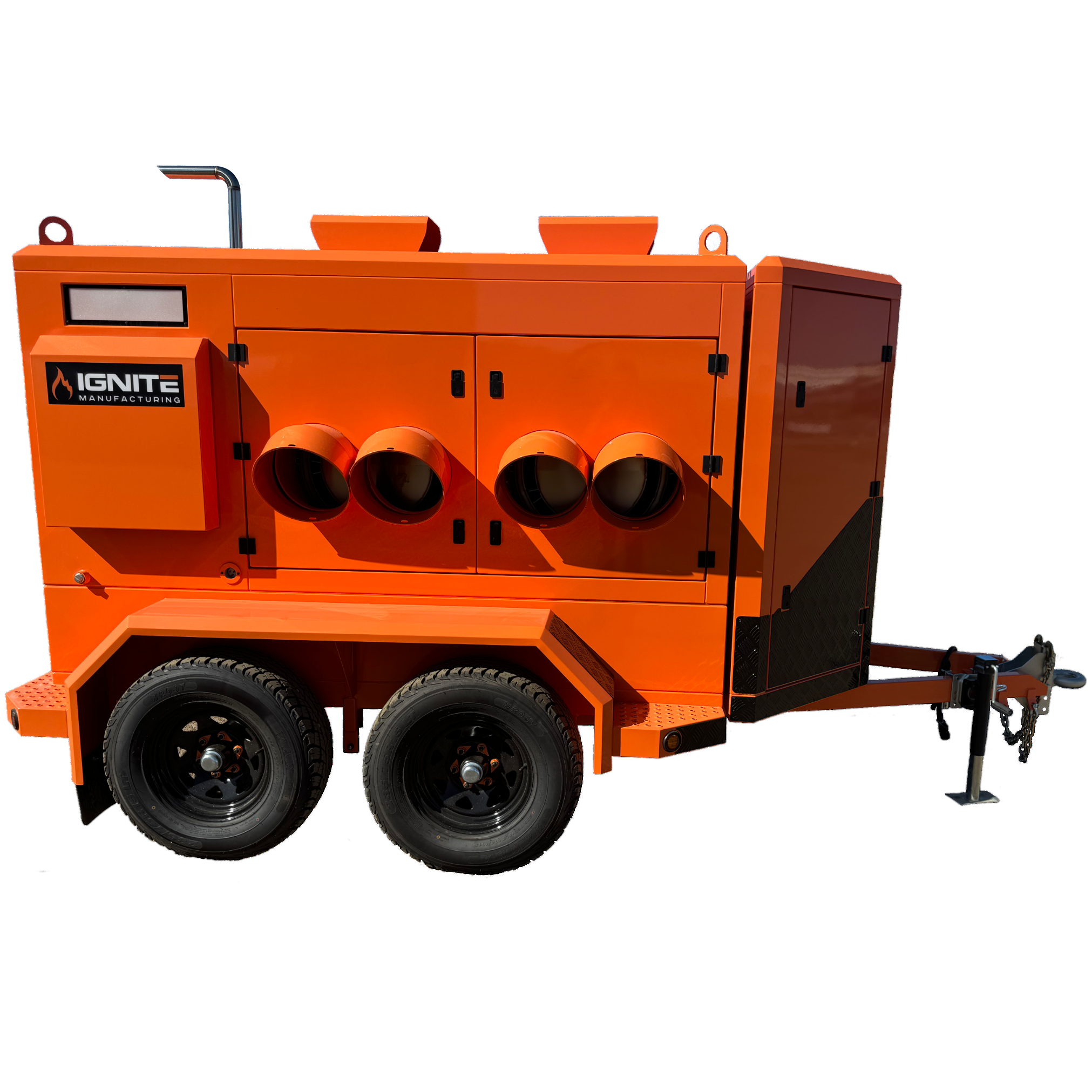

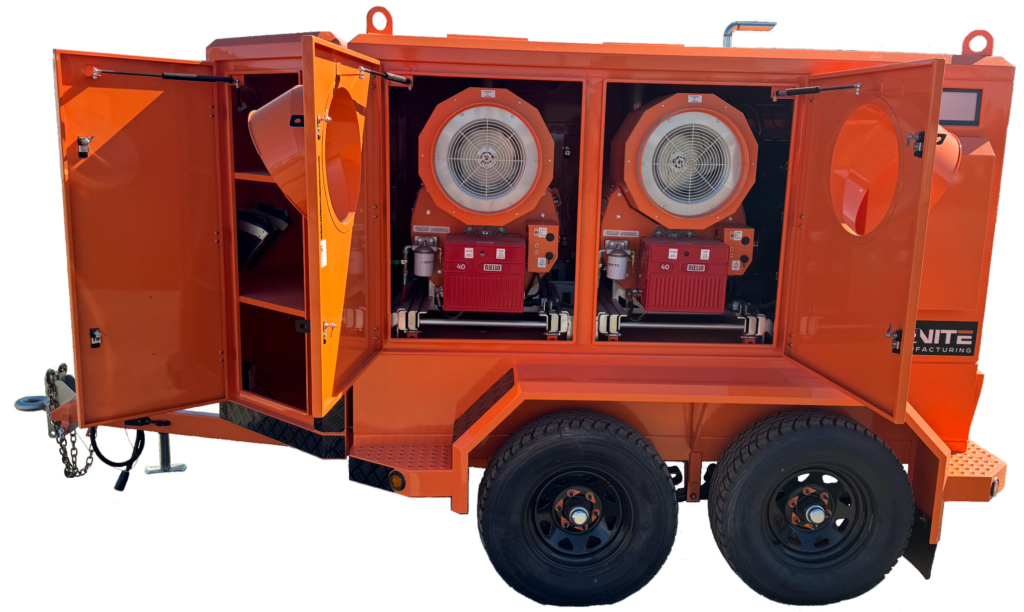

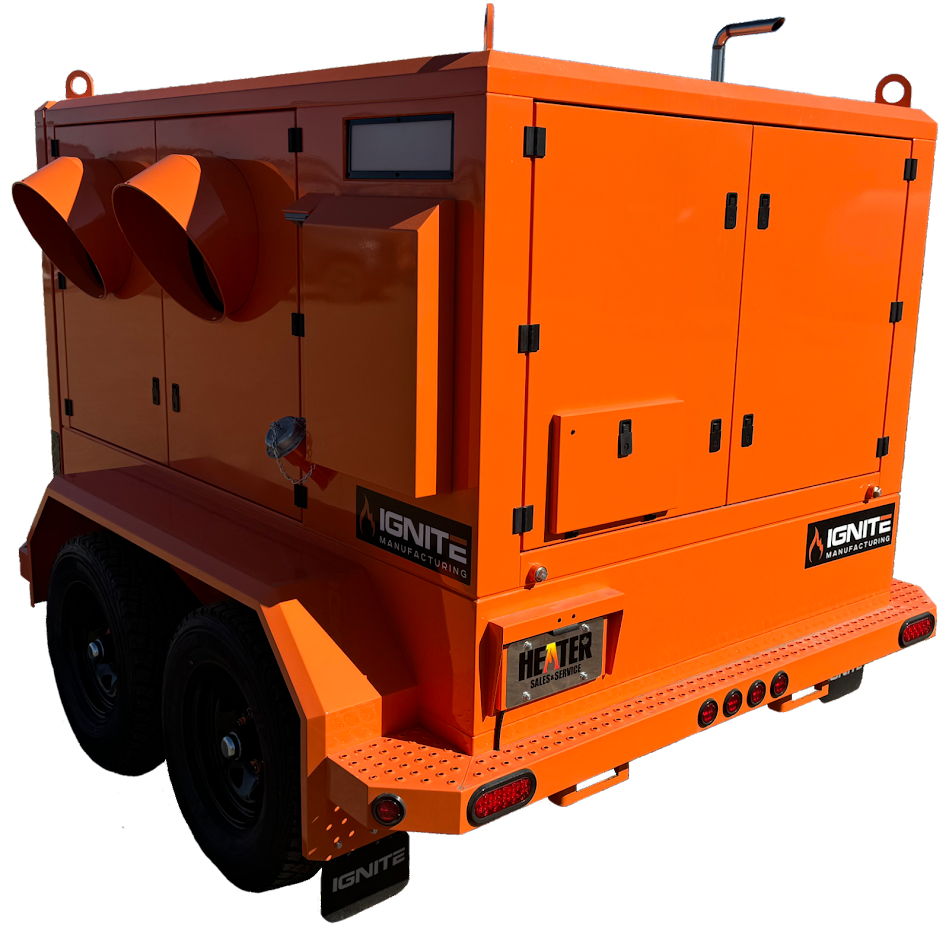

HT-TB1000 Trailblazer

The Trailblazer includes two heaters, a fuel source, and genset that runs on diesel or kerosene. Ideal for remote jobsite locations where power & space are a challenge, the all-in-one Trailblazer provides reliable power, clean heat, a large fuel capacity, interior and exterior lighting, and a large storage compartment. Its double-walled fuel tank gives you and your customers peace of mind. The optional thermostat provides better temperature control for larger projects or worksites, helping maintain comfort while improving fuel efficiency and equipment longevity. The Riello burner includes a nozzle pre-heater to ensure consistent and easy start-up and heating efficiency.

Features

Construction
It’s all welded robust body structure keeps water away from internal components and allows the Trailblazer to be used in harsh environments/conditions. The 4-point roof top lifting hooks are ideal for moving the trailer to tight and/or remote jobsite locations.
Front Storage Compartment
The Trailblazer is equipped with a large dual door multi-shelf storage compartment, ideal for storing ducting, hand tools, power tools, and the included wheel chock holders and wheel chocks.
Recirculating Hood
A recirculating hood on a space heater is designed to improve heating efficiency and safety. It works by capturing heat from the burner that would otherwise be lost to the environment. Recirculating it leads to reduced fuel consumption and lower heating costs.
Premium Riello Oil Burner With Built-In Nozzle Pre-Heater
Experience unmatched efficiency with our premium Riello oil burner, featuring a built-in nozzle pre-heater to ensure optimal fuel viscosity and flawless ignition in colder conditions. This advanced technology guarantees reliable performance and superior heating output, making it ideal for demanding industrial applications.
110% Containment Secondary Fuel Tank
Our heaters are built with a 110% containment secondary fuel tank, providing an extra layer of safety by catching and containing any leaks or overflows from the primary tank. This feature significantly reduces the risk of environmental contamination and fuel wastage, ensuring compliance with stringent safety and environmental regulations. Ideal for peace of mind in any industrial application.
Stainless Steel Heat Exchanger
Our heaters are equipped with fully welded 304 stainless steel heat exchangers that offers exceptional durability and corrosion resistance, ensuring long-term reliability and efficiency. This high-quality material maintains optimal heat transfer, reducing energy consumption while withstanding the rigours of industrial use. Ideal for maintaining consistent performance in challenging environments.

Specifications

Fuel Type
No.1 or No.2 Fuel Oil, Diesel or Kerosene
Engine
Kubota or Kohlar (Block Heater Incl.)
Generator
Stamford or Meccalte
Ignition
Riello Burner Direct Spark
Power Requirements
115 V / 15 A (8 A Draw)
Fan Motor / Air Circulation
7000 CFM / Dual 3.0" WC
Maximum Duct Temperature (Above Ambient)
290°F / 143 °C
Heating Capacity
2 x HO-400R Indirect Heaters
Min: 325,000 BTU / Heater
Max: 390,000 BTU / Heater
CFM / Static Pressure
7000 CFM / Dual 3.0" W.C.
Ducting Capacity
Up to 100 ft per Outlet
Air Inlet
2 x 16" Dia
Standard Air Outlet
4 x 12" Dia
Optional Air Outlet
2 x 16" Dia
Fuel Consumption
7.08 Gal/hr (Includes 2 Heaters/Genset)
Fuel Tank Capacity
290 US Ga. / 41 Hrs Runtime
Dimensions (L x W x H)
13' x 7.5' x 7' (396 x 229 x 213 cm)
Weight
5500 lbs (Empty)
Approvals
CSA / ESA

Documents

HT-TB1000 Information Sheet

HT-TB1000 Trailblazer Explosive Diagram

Indirect Fired Heaters

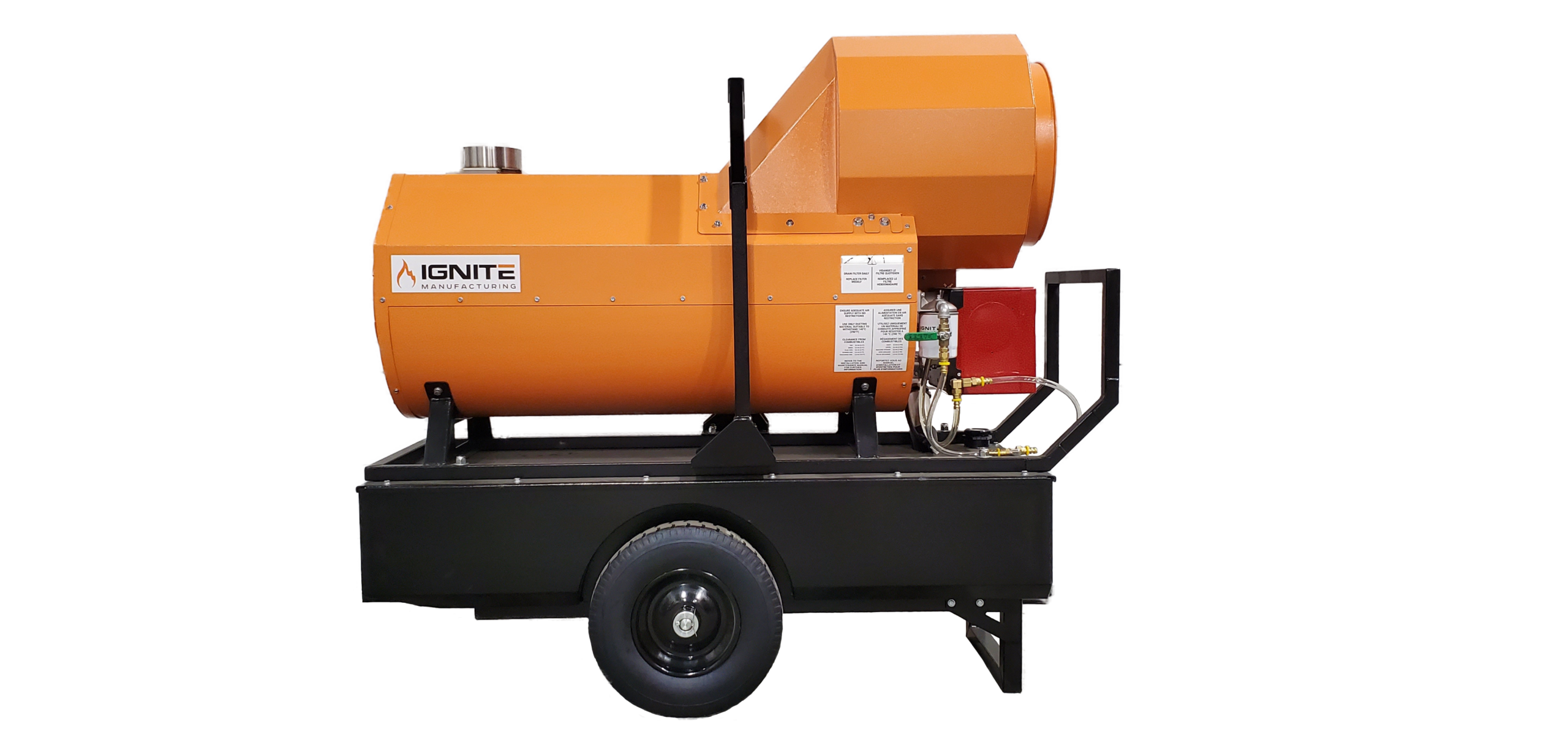

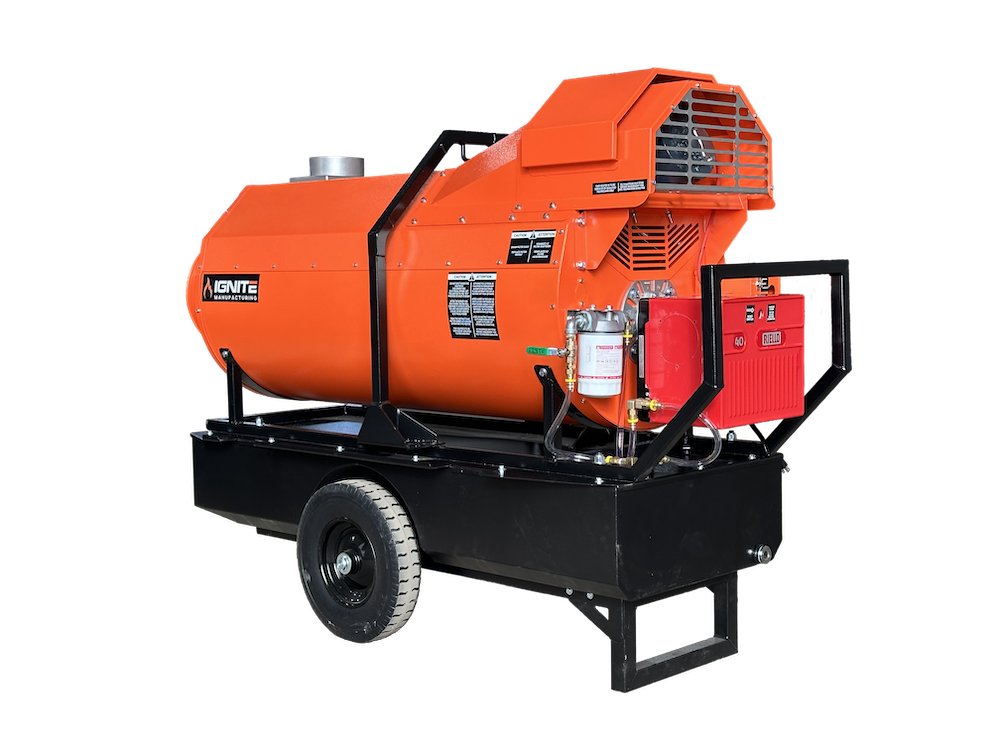

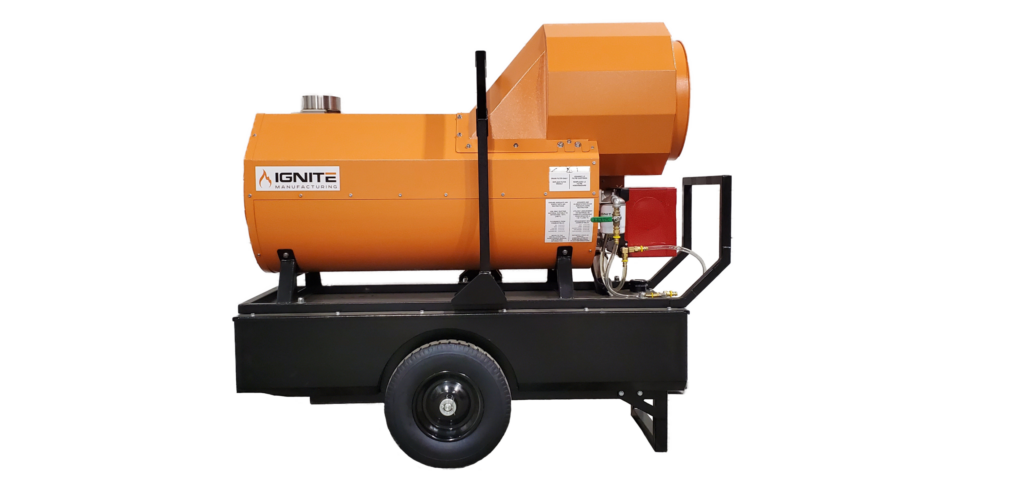

HO-400 Indirect Oil Fired Heater

Built for reliability in rugged conditions, the HO-400 is a heavy-duty indirect oil-fired heater that delivers dependable heat using diesel or kerosene. Ideal for mid- to large-scale job sites, this unit features a built-in voltmeter to confirm power status at a glance, and an optional thermostat for greater temperature control and longer runtimes. A Riello burner with a nozzle pre-heater ensures smooth starts and consistent heating, even in colder climates. Designed to be both powerful and portable, the HO-400 offers flexible ducting options and certified safety with cETLus approval.

Features

Premium Riello Oil Burner With Built-In Nozzle Pre-Heater
Experience unmatched efficiency with our premium Riello oil burner, featuring a built-in nozzle pre-heater to ensure optimal fuel viscosity and flawless ignition in colder conditions. This advanced technology guarantees reliable performance and superior heating output, making it ideal for demanding industrial applications.
Built-In Voltmeter
Our industrial heaters are equipped with a precision voltmeter, allowing for real-time monitoring of electrical output. This ensures your equipment operates within safe electrical parameters, enhancing both efficiency and longevity of the heater. It’s an essential tool for maintaining consistent performance and preventing electrical issues.
Safety Switches
Safety is paramount in industrial settings, which is why our heaters are designed with multiple safety switches. These critical components help prevent accidents by automatically shutting off power in the event of overheating, electrical faults, or other hazardous situations. Trust in our safety features to protect your operations and ensure a secure working environment.
110% Containment Secondary Fuel Tank
Our heaters are built with a 110% containment secondary fuel tank, providing an extra layer of safety by catching and containing any leaks or overflows from the primary tank. This feature significantly reduces the risk of environmental contamination and fuel wastage, ensuring compliance with stringent safety and environmental regulations. Ideal for peace of mind in any industrial application.
16” Solid Wheels With Heavy Duty 1” Hub & Axle
Built to withstand the toughest conditions, our heaters come equipped with 16” solid wheels featuring a heavy-duty 1” hub and axle. This robust design ensures easy and reliable mobility across a variety of terrains, making transportation hassle-free even in demanding industrial environments.
Water Proof Thermostat Connection
Ensure reliable temperature control in all conditions with our waterproof thermostat connection. This feature offers protection against moisture and dust, maintaining the integrity of your temperature settings in harsh environments. It’s a vital component for consistent performance and durability, especially in outdoor or wet industrial settings.
Forklift Side Brackets
Our heaters are equipped with robust forklift side brackets, making them easy to lift and transport securely around the worksite. These brackets are designed to accommodate standard forklift tines, enhancing mobility and reducing setup time. Ideal for dynamic industrial environments where equipment needs to be moved frequently and efficiently.

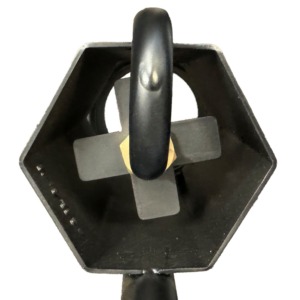

Robust Lifting Hook
Maximize convenience and safety with our robust lifting hook, engineered for secure overhead lifting. This durable hook supports easy positioning and relocation of the heater, even in confined or elevated spaces. It’s an essential feature for industries that require frequent maneuverability of equipment, ensuring operations proceed smoothly and safely.
Stainless Steel Heat Exchanger
Our heaters are equipped with fully welded 304 stainless steel heat exchangers that offers exceptional durability and corrosion resistance, ensuring long-term reliability and efficiency. This high-quality material maintains optimal heat transfer, reducing energy consumption while withstanding the rigours of industrial use. Ideal for maintaining consistent performance in challenging environments.

Specifications

Fuel Type
No.1 or No.2 Fuel Oil, Diesel, or Kerosene
Input / Hr
Min: 325,000 BTU (95 kW)
Max: 390,000 BTU (114 kW)
Fuel Consumption / Hr
3 US Ga. / 11.4 L
Fuel Tank Capacity
48 US Ga. / 180 L
16 Hr Run Time
Optional Fuel Tank Capacity
60 US Ga. / 227 L
20 Hr Run Time
Ignition
Riello Burner Direct Spark
Power Requirements
115 V / 15 A (10 A Draw)
Fan Motor / Air Circulation
3/4 HP / 2,500 CFM (70.8 m³/min)
Maximum Static Pressure
2.5" WC (623 Pa)
Standard Air Outlet
2 x 12" Dia, Max 50 ft of Ducting
Optional Air Outlet
1 x 16" Dia, Max 50 ft of Ducting
Weight
580 lbs / 263 kg
Dimensions
70" x 30" x 52" / 178 x 76 x 132 cm
Maximum Duct Temperature (Above Ambient)
290°F / 143°C
Approvals
cETLus

Documents

HO-400(R) Information Sheet

HO-400(R) User Instructions Manual

HO-400(R) User Instructions Manual (FR)

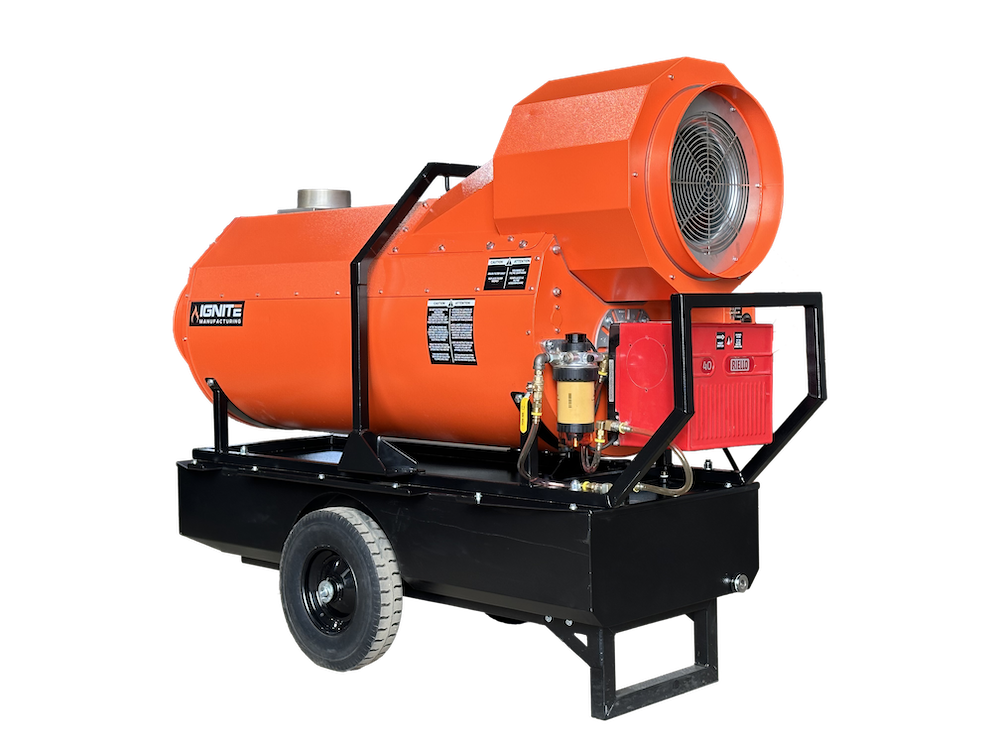

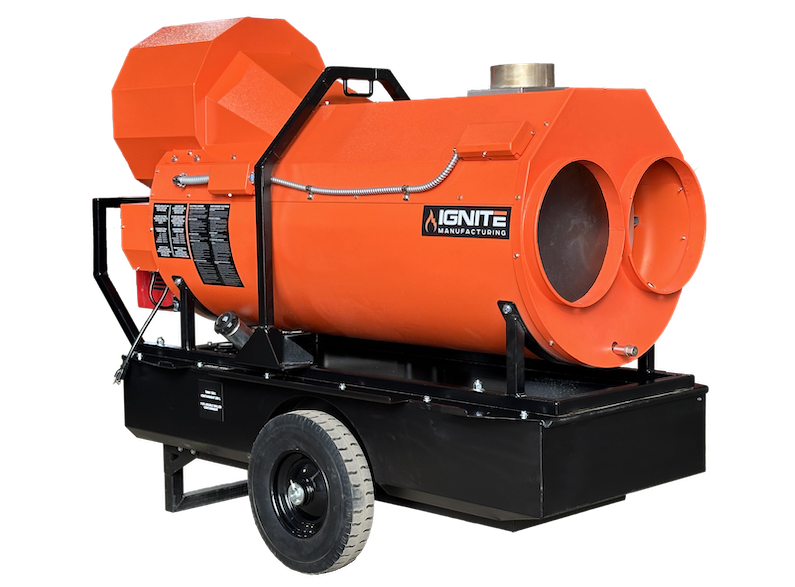

HO-400R Indirect Oil Fired Heater

An upgraded version of the HO-400, the HO-400R adds enhanced performance features for demanding environments. Designed with a backward-incline fan system and a recirculating hood, this model reduces operational noise while increasing airflow efficiency, making it perfect for projects where both heat and quiet operation are priorities. It still runs on diesel or kerosene, and includes the same Riello burner with nozzle pre-heater, built-in voltmeter, and thermostat compatibility. If you need quiet, powerful, and efficient oil-fired heat, the HO-400R is the solution.

Features

Recirculating Hood
A recirculating hood on a space heater is designed to improve heating efficiency and safety. It works by capturing heat from the burner that would otherwise be lost to the environment. Recirculating it leads to reduced fuel consumption and lower heating costs.
Premium Riello Oil Burner With Built-In Nozzle Pre-Heater
Experience unmatched efficiency with our premium Riello oil burner, featuring a built-in nozzle pre-heater to ensure optimal fuel viscosity and flawless ignition in colder conditions. This advanced technology guarantees reliable performance and superior heating output, making it ideal for demanding industrial applications.
Built-In Voltmeter
Our industrial heaters are equipped with a precision voltmeter, allowing for real-time monitoring of electrical output. This ensures your equipment operates within safe electrical parameters, enhancing both efficiency and longevity of the heater. It’s an essential tool for maintaining consistent performance and preventing electrical issues.
Safety Switches
Safety is paramount in industrial settings, which is why our heaters are designed with multiple safety switches. These critical components help prevent accidents by automatically shutting off power in the event of overheating, electrical faults, or other hazardous situations. Trust in our safety features to protect your operations and ensure a secure working environment.
110% Containment Secondary Fuel Tank
Our heaters are built with a 110% containment secondary fuel tank, providing an extra layer of safety by catching and containing any leaks or overflows from the primary tank. This feature significantly reduces the risk of environmental contamination and fuel wastage, ensuring compliance with stringent safety and environmental regulations. Ideal for peace of mind in any industrial application.
16” Solid Wheels With Heavy Duty 1” Hub & Axle
Built to withstand the toughest conditions, our heaters come equipped with 16” solid wheels featuring a heavy-duty 1” hub and axle. This robust design ensures easy and reliable mobility across a variety of terrains, making transportation hassle-free even in demanding industrial environments.
Water Proof Thermostat Connection
Ensure reliable temperature control in all conditions with our waterproof thermostat connection. This feature offers protection against moisture and dust, maintaining the integrity of your temperature settings in harsh environments. It’s a vital component for consistent performance and durability, especially in outdoor or wet industrial settings.
Forklift Side Brackets
Our heaters are equipped with robust forklift side brackets, making them easy to lift and transport securely around the worksite. These brackets are designed to accommodate standard forklift tines, enhancing mobility and reducing setup time. Ideal for dynamic industrial environments where equipment needs to be moved frequently and efficiently.
Robust Lifting Hook
Maximize convenience and safety with our robust lifting hook, engineered for secure overhead lifting. This durable hook supports easy positioning and relocation of the heater, even in confined or elevated spaces. It’s an essential feature for industries that require frequent maneuverability of equipment, ensuring operations proceed smoothly and safely.
Stainless Steel Heat Exchanger
Our heaters are equipped with fully welded 304 stainless steel heat exchangers that offers exceptional durability and corrosion resistance, ensuring long-term reliability and efficiency. This high-quality material maintains optimal heat transfer, reducing energy consumption while withstanding the rigours of industrial use. Ideal for maintaining consistent performance in challenging environments.

Specifications

Fuel Type
No.1 or No.2 Fuel Oil, Diesel, or Kerosene
Input / Hr
Min: 325,000 BTU (95 kW)
Max: 390,000 BTU (114 kW)
Fuel Consumption / Hr
3 US Ga. / 11.4 L
Fuel Tank Capacity
48 US Ga. / 180 L
16 Hr Run Time
Optional Fuel Tank Capacity
60 US Ga. / 227 L
20 Hr Run Time or
118 US Ga. / 447 L
39 Hr Run Time
Ignition
Riello Burner Direct Spark
Power Requirements
115 V / 15 A (10 A Draw)
Fan Motor / Air Circulation
1 HP / 3,500 CFM (99.1 m³/min)
Maximum Static Pressure
3.0" WC (747 Pa)
Air Inlet
1 x 16" (40.5 cm)
Standard Air Outlet
2 x 12" Dia, Max 100 ft of Ducting
Optional Air Outlet
1 x 16" Dia, Max 100 ft of Ducting
Weight
600 lbs / 272 kg
Dimensions
70" x 30" x 52" / 178 x 76 x 132 cm
Maximum Duct Temperature (Above Ambient)
290°F / 143°C
Approvals
cETLus

Documents

HO-400(R) Information Sheet

HO-400(R) User Instructions Manual

HO-400(R) User Instructions Manual (FR)

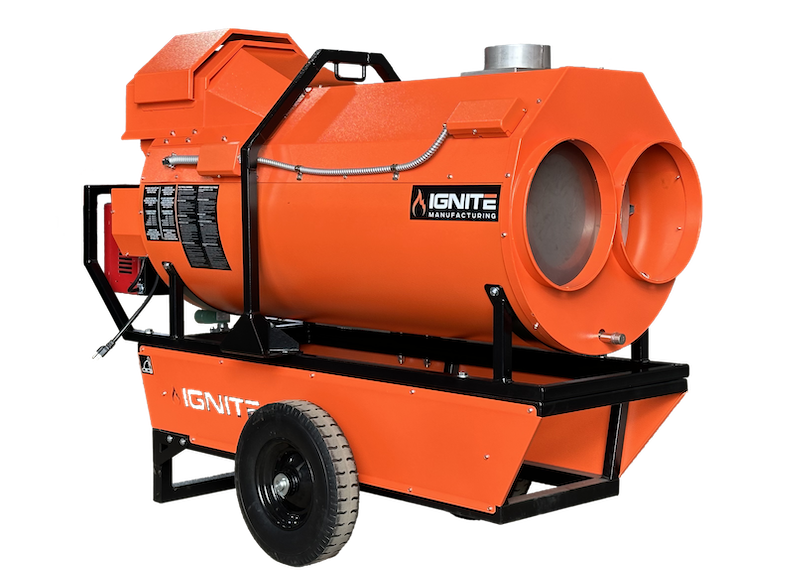

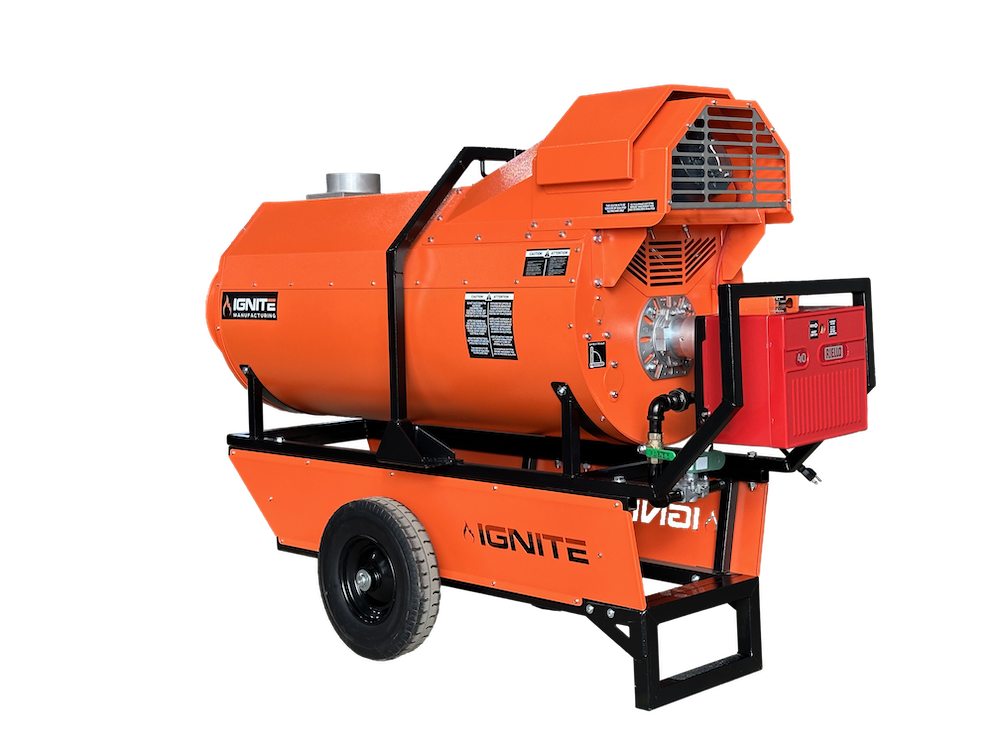

HD-400 Indirect Gas Fired Dual Fuel Heater

Flexible, fuel-efficient, and field-proven, the HD-400 offers dual-fuel capability for job sites that require propane or natural gas heating. This heater features a fuel selector valve for quick, easy switching between fuel types and includes a Riello burner known for its reliability and combustion performance. The built-in voltmeter ensures safe setup by verifying electrical input, while the remote thermostat enhances comfort and control. Ideal for indoor or semi-enclosed spaces, the HD-400 delivers clean, indirect heat without compromise.

Features

Premium Dual Fuel Riello Burner
Enhance your operational flexibility with our Premium Dual Fuel Riello Burner, designed to efficiently run on Natural Gas or Propane. This versatility allows for easy adaptation to varying fuel supplies without compromising on performance. Ideal for industrial environments where fuel availability can fluctuate, ensuring continuous operation and maximum efficiency.
Built-In Voltmeter
Our industrial heaters are equipped with a precision voltmeter, allowing for real-time monitoring of electrical output. This ensures your equipment operates within safe electrical parameters, enhancing both efficiency and longevity of the heater. It’s an essential tool for maintaining consistent performance and preventing electrical issues.
Safety Switches
Safety is paramount in industrial settings, which is why our heaters are designed with multiple safety switches. These critical components help prevent accidents by automatically shutting off power in the event of overheating, electrical faults, or other hazardous situations. Trust in our safety features to protect your operations and ensure a secure working environment.
16” Solid Wheels With Heavy Duty 1” Hub & Axle
Built to withstand the toughest conditions, our heaters come equipped with 16” solid wheels featuring a heavy-duty 1” hub and axle. This robust design ensures easy and reliable mobility across a variety of terrains, making transportation hassle-free even in demanding industrial environments.
Water Proof Thermostat Connection
Ensure reliable temperature control in all conditions with our waterproof thermostat connection. This feature offers protection against moisture and dust, maintaining the integrity of your temperature settings in harsh environments. It’s a vital component for consistent performance and durability, especially in outdoor or wet industrial settings.
Robust Lifting Hook
Maximize convenience and safety with our robust lifting hook, engineered for secure overhead lifting. This durable hook supports easy positioning and relocation of the heater, even in confined or elevated spaces. It’s an essential feature for industries that require frequent maneuverability of equipment, ensuring operations proceed smoothly and safely.
Stainless Steel Heat Exchanger
Our heaters are equipped with fully welded 304 stainless steel heat exchangers that offers exceptional durability and corrosion resistance, ensuring long-term reliability and efficiency. This high-quality material maintains optimal heat transfer, reducing energy consumption while withstanding the rigours of industrial use. Ideal for maintaining consistent performance in challenging environments.
Valvetrain Solenoid and Regulator
Our heaters are designed with a precision valvetrain solenoid and regulator, ensuring optimal fuel flow and combustion control. This system provides precise management of gas pressure and delivery, enhancing efficiency and stability of the heater’s operation. It’s an essential feature for achieving consistent performance and reducing fuel consumption in industrial settings.

Specifications

Fuel Type
Propane or Natural Gas
Input / Hr
390,000 BTU (114 kW)
Fuel Consumption / Hr
18 lbs / 8.2 kg Propane
390 cf /11 m³ Natural Gas
Ignition
Riello Burner Direct Spark
Power Requirements
115 V / 15 A (10 A Draw)
Fan Motor / Air Circulation
3/4 HP / 2,500 CFM (70.8 m³/min)
Maximum Static Pressure
2.5" WC (623 Pa)
Standard Air Outlet
2 x 12" Dia, Max 50 ft of Ducting
Optional Air Outlet
1 x 16" Dia, Max 50 ft of Ducting
Weight
460 lbs / 209 kg
Dimensions
70" x 30" x 52" / 178 x 76 x 132 cm
Maximum Duct Temperature (Above Ambient)
290°F / 143°C
Approvals
cETLus

Documents

HD-400(R) Information Sheet

HD-400(R) User Instructions Manual

HD-400(R) User Instructions Manual (FR)

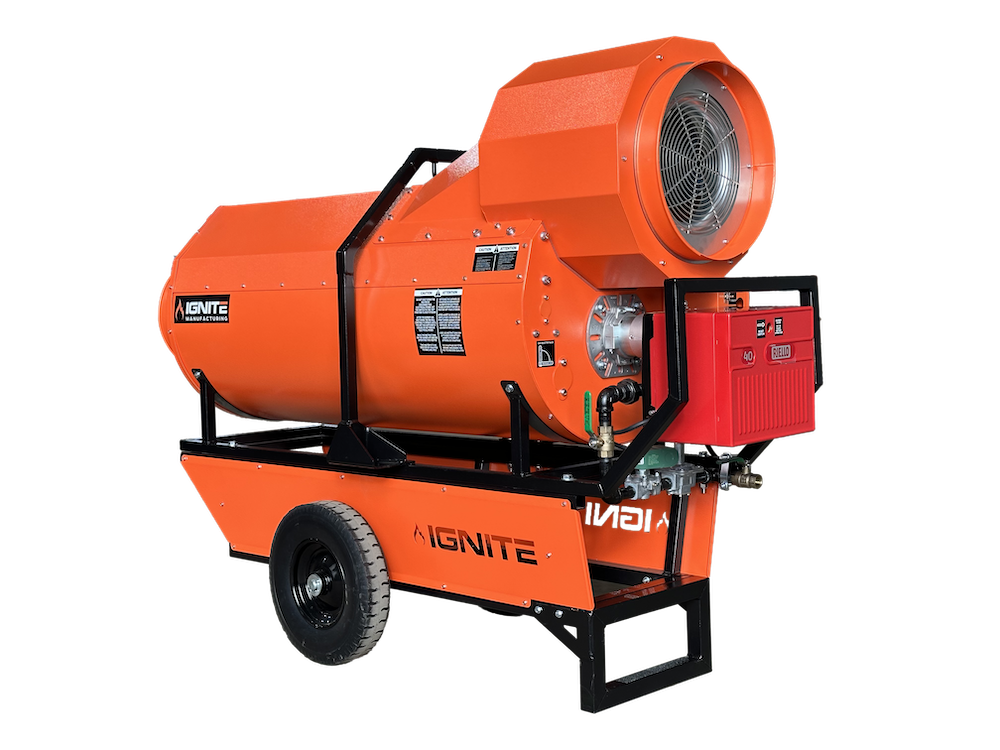

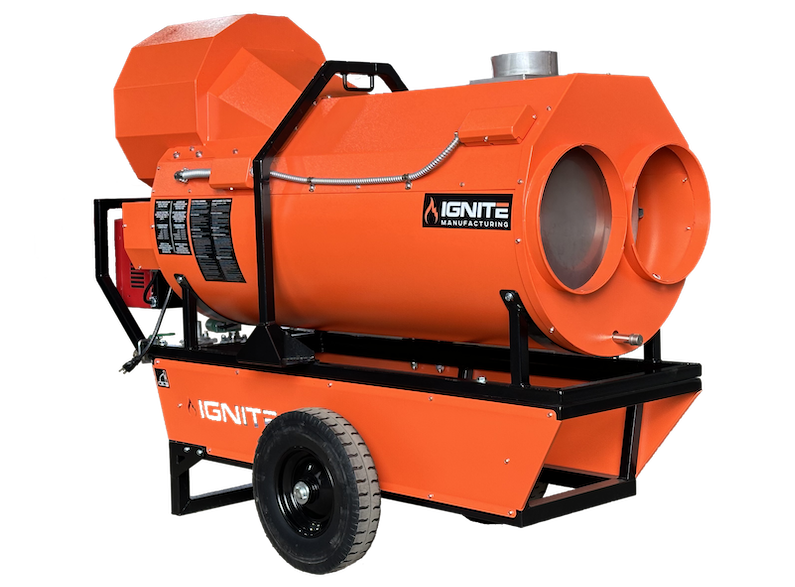

HD-400R Indirect Gas Fired Dual Fuel Heater

The HD-400R combines all the versatility of the standard HD-400 with added efficiency and comfort. Its upgraded recirculating hood and backward-incline fan design deliver higher airflow with less noise, perfect for sensitive or high-occupancy work environments. Like the HD-400, it supports both propane and natural gas with an easy-to-use selector valve and includes a high-performance Riello burner. A built-in voltmeter and thermostat offer added safety and precision, making the HD-400R a top-tier choice for dual-fuel heating with minimal disruption.

Features

Recirculating Hood
A recirculating hood on a space heater is designed to improve heating efficiency and safety. It works by capturing heat from the burner that would otherwise be lost to the environment. Recirculating it leads to reduced fuel consumption and lower heating costs.
Premium Dual Fuel Riello Burner
Enhance your operational flexibility with our Premium Dual Fuel Riello Burner, designed to efficiently run on Natural Gas or Propane. This versatility allows for easy adaptation to varying fuel supplies without compromising on performance. Ideal for industrial environments where fuel availability can fluctuate, ensuring continuous operation and maximum efficiency.
Built-In Voltmeter
Our industrial heaters are equipped with a precision voltmeter, allowing for real-time monitoring of electrical output. This ensures your equipment operates within safe electrical parameters, enhancing both efficiency and longevity of the heater. It’s an essential tool for maintaining consistent performance and preventing electrical issues.
Safety Switches
Safety is paramount in industrial settings, which is why our heaters are designed with multiple safety switches. These critical components help prevent accidents by automatically shutting off power in the event of overheating, electrical faults, or other hazardous situations. Trust in our safety features to protect your operations and ensure a secure working environment.
16” Solid Wheels With Heavy Duty 1” Hub & Axle
Built to withstand the toughest conditions, our heaters come equipped with 16” solid wheels featuring a heavy-duty 1” hub and axle. This robust design ensures easy and reliable mobility across a variety of terrains, making transportation hassle-free even in demanding industrial environments.
Water Proof Thermostat Connection
Ensure reliable temperature control in all conditions with our waterproof thermostat connection. This feature offers protection against moisture and dust, maintaining the integrity of your temperature settings in harsh environments. It’s a vital component for consistent performance and durability, especially in outdoor or wet industrial settings.
Robust Lifting Hook
Maximize convenience and safety with our robust lifting hook, engineered for secure overhead lifting. This durable hook supports easy positioning and relocation of the heater, even in confined or elevated spaces. It’s an essential feature for industries that require frequent maneuverability of equipment, ensuring operations proceed smoothly and safely.
Stainless Steel Heat Exchanger
Our heaters are equipped with fully welded 304 stainless steel heat exchangers that offers exceptional durability and corrosion resistance, ensuring long-term reliability and efficiency. This high-quality material maintains optimal heat transfer, reducing energy consumption while withstanding the rigours of industrial use. Ideal for maintaining consistent performance in challenging environments.
Valvetrain Solenoid and Regulator
Our heaters are designed with a precision valvetrain solenoid and regulator, ensuring optimal fuel flow and combustion control. This system provides precise management of gas pressure and delivery, enhancing efficiency and stability of the heater’s operation. It’s an essential feature for achieving consistent performance and reducing fuel consumption in industrial settings.

Specifications

Fuel Type
No.1 or No.2 Fuel Oil, Diesel, or Kerosene
Input / Hr
Min: 325,000 BTU (95 kW)
Max: 390,000 BTU (114 kW)
Fuel Consumption / Hr
3 US Ga. / 11.4 L
Fuel Tank Capacity
48 US Ga. / 180 L
16 Hr Run Time
Optional Fuel Tank Capacity
60 US Ga. / 227 L
20 Hr Run Time or
118 US Ga. / 447 L
39 Hr Run Time
Ignition
Riello Burner Direct Spark
Power Requirements
115 V / 15 A (10 A Draw)
Fan Motor / Air Circulation
1 HP / 3,500 CFM (99.1 m³/min)
Maximum Static Pressure
3.0" WC (747 Pa)
Air Inlet
1 x 16" (40.5 cm)
Standard Air Outlet
2 x 12" Dia, Max 100 ft of Ducting
Optional Air Outlet
1 x 16" Dia, Max 100 ft of Ducting
Weight
600 lbs / 272 kg
Dimensions
70" x 30" x 52" / 178 x 76 x 132 cm
Maximum Duct Temperature (Above Ambient)
290°F / 143°C
Approvals
cETLus

Documents

HD-400(R) Information Sheet

HD-400(R) User Instructions Manual

HD-400(R) User Instructions Manual (FR)

HD-200R Indirect Gas Fired Dual Fuel Heater

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Fusce turpis augue, dignissim commodo varius at, pellentesque sit amet quam. Suspendisse potenti. Aliquam sit amet venenatis arcu, et gravida lacus. Morbi vehicula at enim quis porttitor. Sed dictum lacus sit amet turpis viverra mattis. In at elementum erat. Sed tincidunt semper augue, et hendrerit elit facilisis a.

Features

Recirculating Hood
A recirculating hood on a space heater is designed to improve heating efficiency and safety. It works by capturing heat from the burner that would otherwise be lost to the environment. Recirculating it leads to reduced fuel consumption and lower heating costs.
Premium Dual Fuel Riello Burner
Enhance your operational flexibility with our Premium Dual Fuel Riello Burner, designed to efficiently run on Natural Gas or Propane. This versatility allows for easy adaptation to varying fuel supplies without compromising on performance. Ideal for industrial environments where fuel availability can fluctuate, ensuring continuous operation and maximum efficiency.
Built-In Voltmeter
Our industrial heaters are equipped with a precision voltmeter, allowing for real-time monitoring of electrical output. This ensures your equipment operates within safe electrical parameters, enhancing both efficiency and longevity of the heater. It’s an essential tool for maintaining consistent performance and preventing electrical issues.
Safety Switches
Safety is paramount in industrial settings, which is why our heaters are designed with multiple safety switches. These critical components help prevent accidents by automatically shutting off power in the event of overheating, electrical faults, or other hazardous situations. Trust in our safety features to protect your operations and ensure a secure working environment.
16” Solid Wheels With Heavy Duty 1” Hub & Axle
Built to withstand the toughest conditions, our heaters come equipped with 16” solid wheels featuring a heavy-duty 1” hub and axle. This robust design ensures easy and reliable mobility across a variety of terrains, making transportation hassle-free even in demanding industrial environments.
Water Proof Thermostat Connection
Ensure reliable temperature control in all conditions with our waterproof thermostat connection. This feature offers protection against moisture and dust, maintaining the integrity of your temperature settings in harsh environments. It’s a vital component for consistent performance and durability, especially in outdoor or wet industrial settings.
Robust Lifting Hook
Maximize convenience and safety with our robust lifting hook, engineered for secure overhead lifting. This durable hook supports easy positioning and relocation of the heater, even in confined or elevated spaces. It’s an essential feature for industries that require frequent maneuverability of equipment, ensuring operations proceed smoothly and safely.
Stainless Steel Heat Exchanger
Our heaters are equipped with fully welded 304 stainless steel heat exchangers that offers exceptional durability and corrosion resistance, ensuring long-term reliability and efficiency. This high-quality material maintains optimal heat transfer, reducing energy consumption while withstanding the rigours of industrial use. Ideal for maintaining consistent performance in challenging environments.
Valvetrain Solenoid and Regulator
Our heaters are designed with a precision valvetrain solenoid and regulator, ensuring optimal fuel flow and combustion control. This system provides precise management of gas pressure and delivery, enhancing efficiency and stability of the heater’s operation. It’s an essential feature for achieving consistent performance and reducing fuel consumption in industrial settings.

Specifications

Fuel Type
No.1 or No.2 Fuel Oil, Diesel, or Kerosene
Input / Hr
Min: 325,000 BTU (95 kW)
Max: 390,000 BTU (114 kW)
Fuel Consumption / Hr
3 US Ga. / 11.4 L
Fuel Tank Capacity
48 US Ga. / 180 L
16 Hr Run Time
Optional Fuel Tank Capacity
60 US Ga. / 227 L
20 Hr Run Time or
118 US Ga. / 447 L
39 Hr Run Time
Ignition
Riello Burner Direct Spark
Power Requirements
115 V / 15 A (10 A Draw)
Fan Motor / Air Circulation
1 HP / 3,500 CFM (99.1 m³/min)
Maximum Static Pressure
3.0" WC (747 Pa)
Air Inlet
1 x 16" (40.5 cm)
Standard Air Outlet
2 x 12" Dia, Max 100 ft of Ducting
Optional Air Outlet
1 x 16" Dia, Max 100 ft of Ducting
Weight
600 lbs / 272 kg
Dimensions
70" x 30" x 52" / 178 x 76 x 132 cm
Maximum Duct Temperature (Above Ambient)
290°F / 143°C
Approvals
cETLus

Documents

HD-400(R) Information Sheet

HD-400(R) User Instructions Manual

HD-400(R) User Instructions Manual (FR)

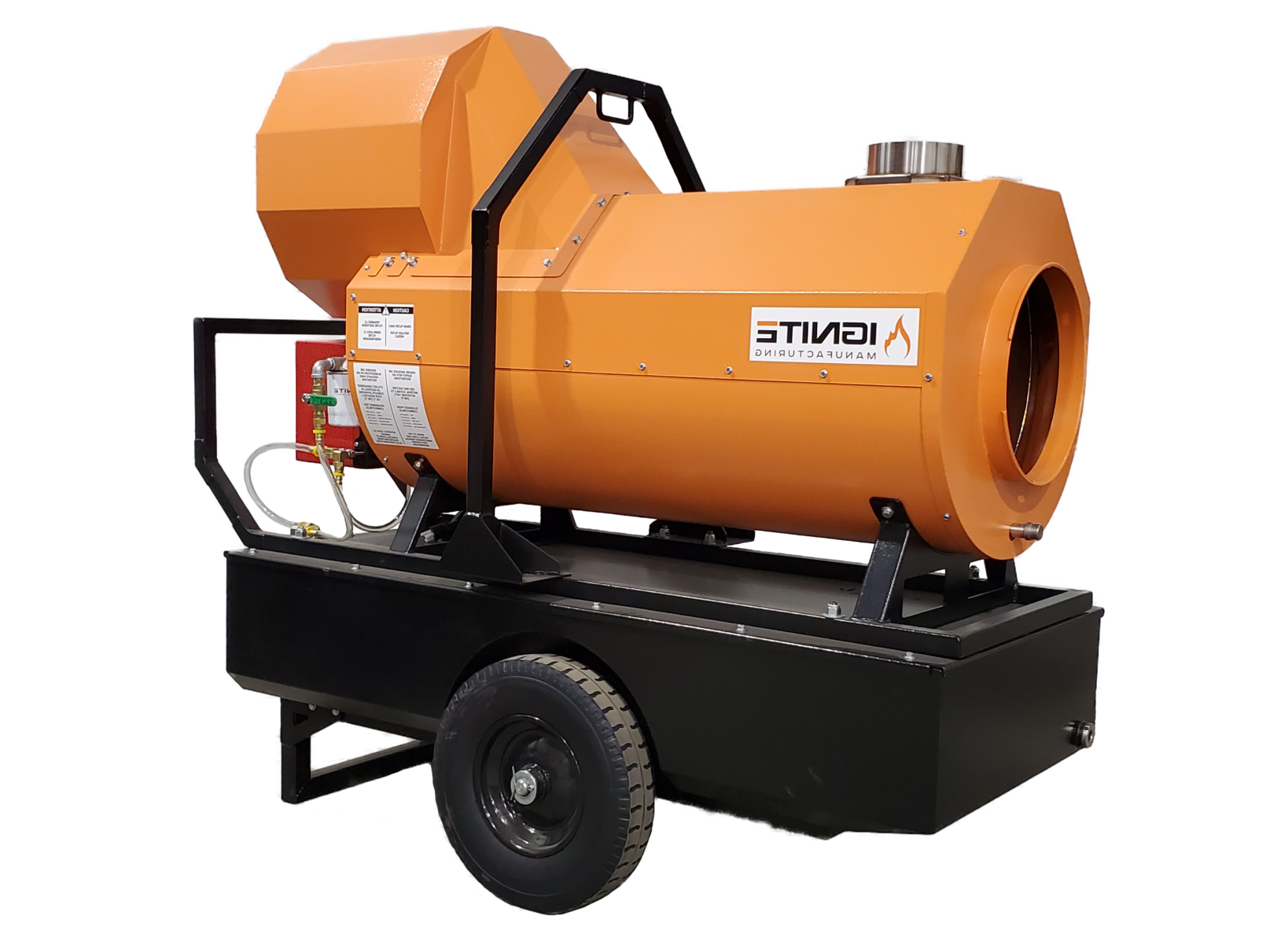

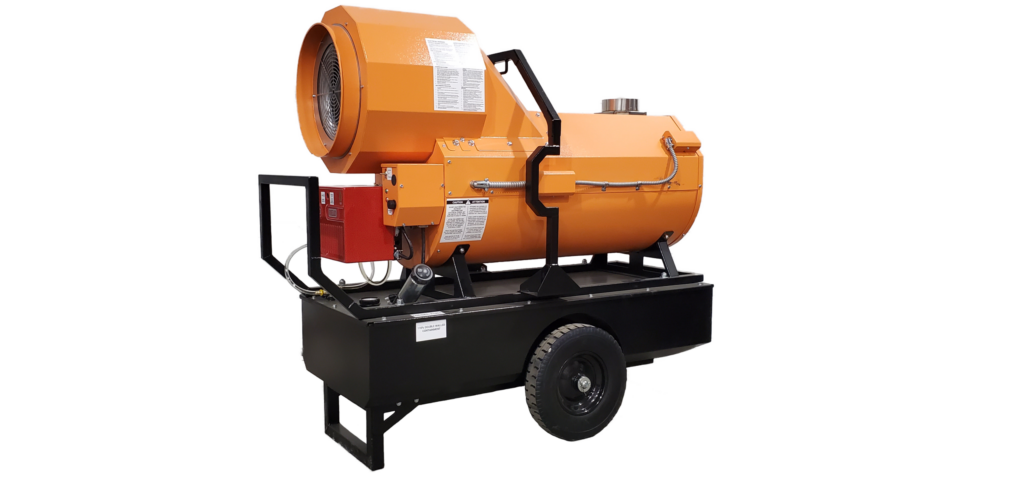

HO-200R Indirect Oil Fired Heater

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Fusce turpis augue, dignissim commodo varius at, pellentesque sit amet quam. Suspendisse potenti. Aliquam sit amet venenatis arcu, et gravida lacus. Morbi vehicula at enim quis porttitor. Sed dictum lacus sit amet turpis viverra mattis. In at elementum erat. Sed tincidunt semper augue, et hendrerit elit facilisis a.

Features

Recirculating Hood
A recirculating hood on a space heater is designed to improve heating efficiency and safety. It works by capturing heat from the burner that would otherwise be lost to the environment. Recirculating it leads to reduced fuel consumption and lower heating costs.
Premium Dual Fuel Riello Burner
Enhance your operational flexibility with our Premium Dual Fuel Riello Burner, designed to efficiently run on Natural Gas or Propane. This versatility allows for easy adaptation to varying fuel supplies without compromising on performance. Ideal for industrial environments where fuel availability can fluctuate, ensuring continuous operation and maximum efficiency.
Built-In Voltmeter
Our industrial heaters are equipped with a precision voltmeter, allowing for real-time monitoring of electrical output. This ensures your equipment operates within safe electrical parameters, enhancing both efficiency and longevity of the heater. It’s an essential tool for maintaining consistent performance and preventing electrical issues.
Safety Switches
Safety is paramount in industrial settings, which is why our heaters are designed with multiple safety switches. These critical components help prevent accidents by automatically shutting off power in the event of overheating, electrical faults, or other hazardous situations. Trust in our safety features to protect your operations and ensure a secure working environment.
16” Solid Wheels With Heavy Duty 1” Hub & Axle
Built to withstand the toughest conditions, our heaters come equipped with 16” solid wheels featuring a heavy-duty 1” hub and axle. This robust design ensures easy and reliable mobility across a variety of terrains, making transportation hassle-free even in demanding industrial environments.
Water Proof Thermostat Connection
Ensure reliable temperature control in all conditions with our waterproof thermostat connection. This feature offers protection against moisture and dust, maintaining the integrity of your temperature settings in harsh environments. It’s a vital component for consistent performance and durability, especially in outdoor or wet industrial settings.
Robust Lifting Hook
Maximize convenience and safety with our robust lifting hook, engineered for secure overhead lifting. This durable hook supports easy positioning and relocation of the heater, even in confined or elevated spaces. It’s an essential feature for industries that require frequent maneuverability of equipment, ensuring operations proceed smoothly and safely.
Stainless Steel Heat Exchanger
Our heaters are equipped with fully welded 304 stainless steel heat exchangers that offers exceptional durability and corrosion resistance, ensuring long-term reliability and efficiency. This high-quality material maintains optimal heat transfer, reducing energy consumption while withstanding the rigours of industrial use. Ideal for maintaining consistent performance in challenging environments.
Valvetrain Solenoid and Regulator
Our heaters are designed with a precision valvetrain solenoid and regulator, ensuring optimal fuel flow and combustion control. This system provides precise management of gas pressure and delivery, enhancing efficiency and stability of the heater’s operation. It’s an essential feature for achieving consistent performance and reducing fuel consumption in industrial settings.

Specifications

Fuel Type
No.1 or No.2 Fuel Oil, Diesel, or Kerosene
Input / Hr
Min: 325,000 BTU (95 kW)
Max: 390,000 BTU (114 kW)
Fuel Consumption / Hr
3 US Ga. / 11.4 L
Fuel Tank Capacity
48 US Ga. / 180 L
16 Hr Run Time
Optional Fuel Tank Capacity
60 US Ga. / 227 L
20 Hr Run Time or
118 US Ga. / 447 L
39 Hr Run Time
Ignition
Riello Burner Direct Spark
Power Requirements
115 V / 15 A (10 A Draw)
Fan Motor / Air Circulation
1 HP / 3,500 CFM (99.1 m³/min)
Maximum Static Pressure
3.0" WC (747 Pa)
Air Inlet
1 x 16" (40.5 cm)
Standard Air Outlet
2 x 12" Dia, Max 100 ft of Ducting
Optional Air Outlet
1 x 16" Dia, Max 100 ft of Ducting
Weight
600 lbs / 272 kg
Dimensions
70" x 30" x 52" / 178 x 76 x 132 cm
Maximum Duct Temperature (Above Ambient)
290°F / 143°C
Approvals
cETLus

Documents

HD-400(R) Information Sheet

HD-400(R) User Instructions Manual

HD-400(R) User Instructions Manual (FR)

Direct Fired Heaters

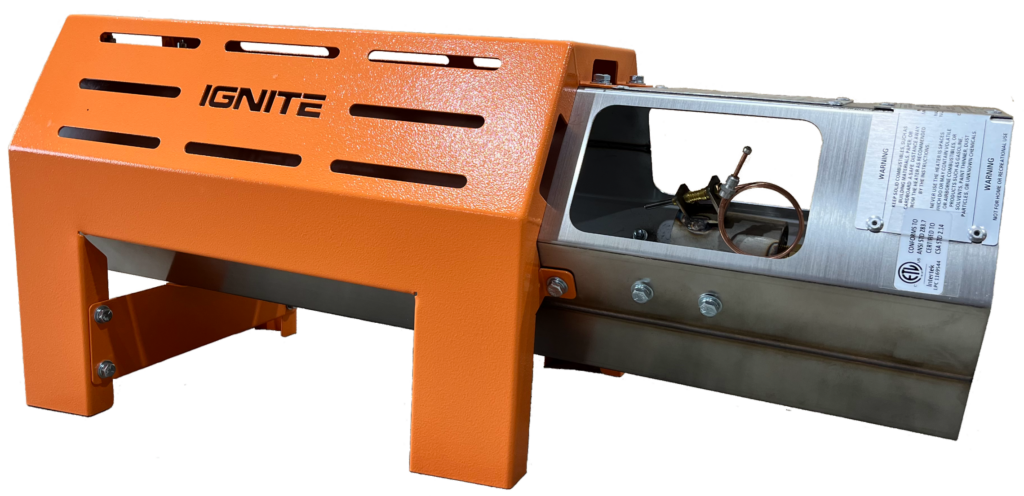

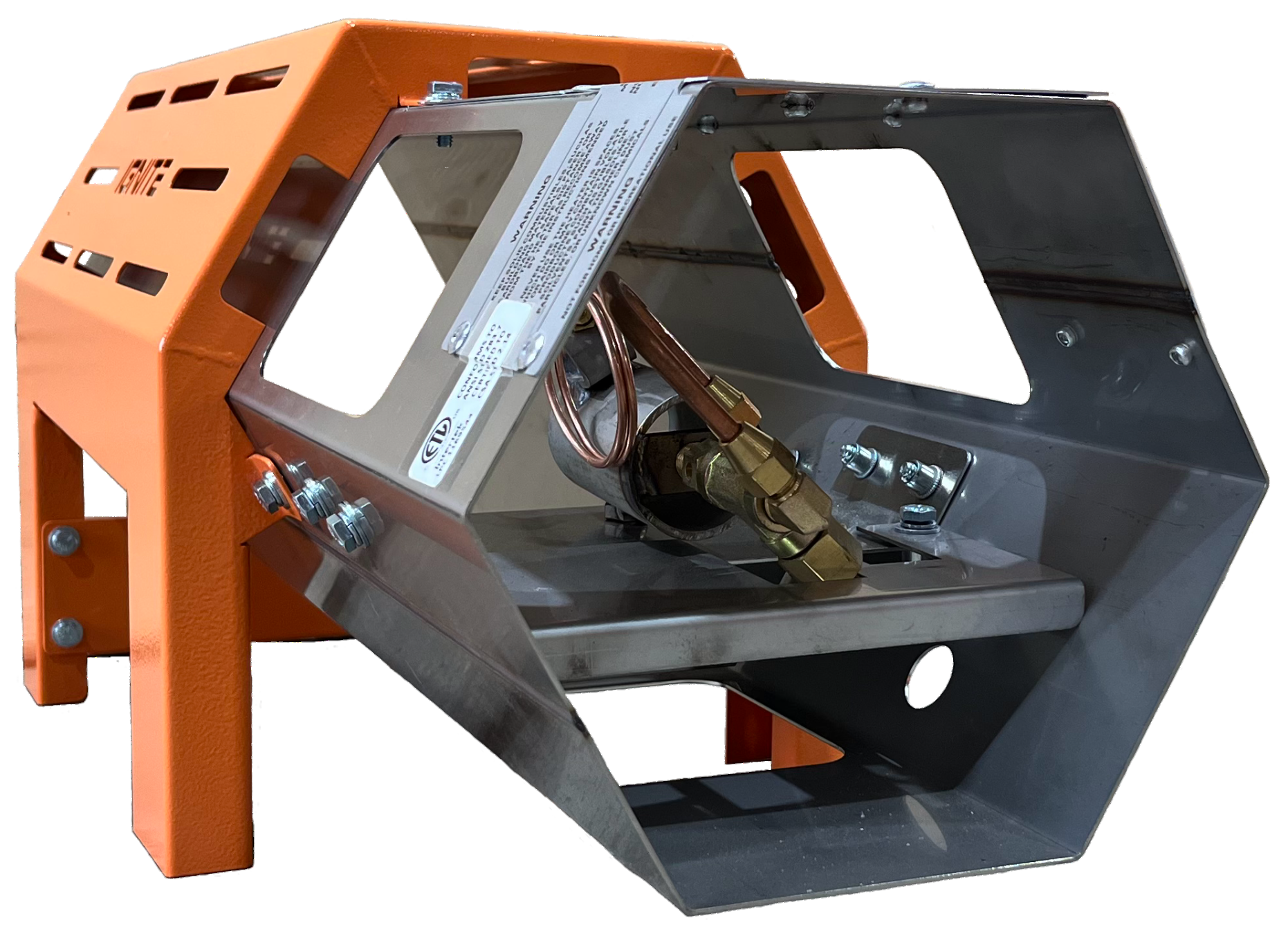

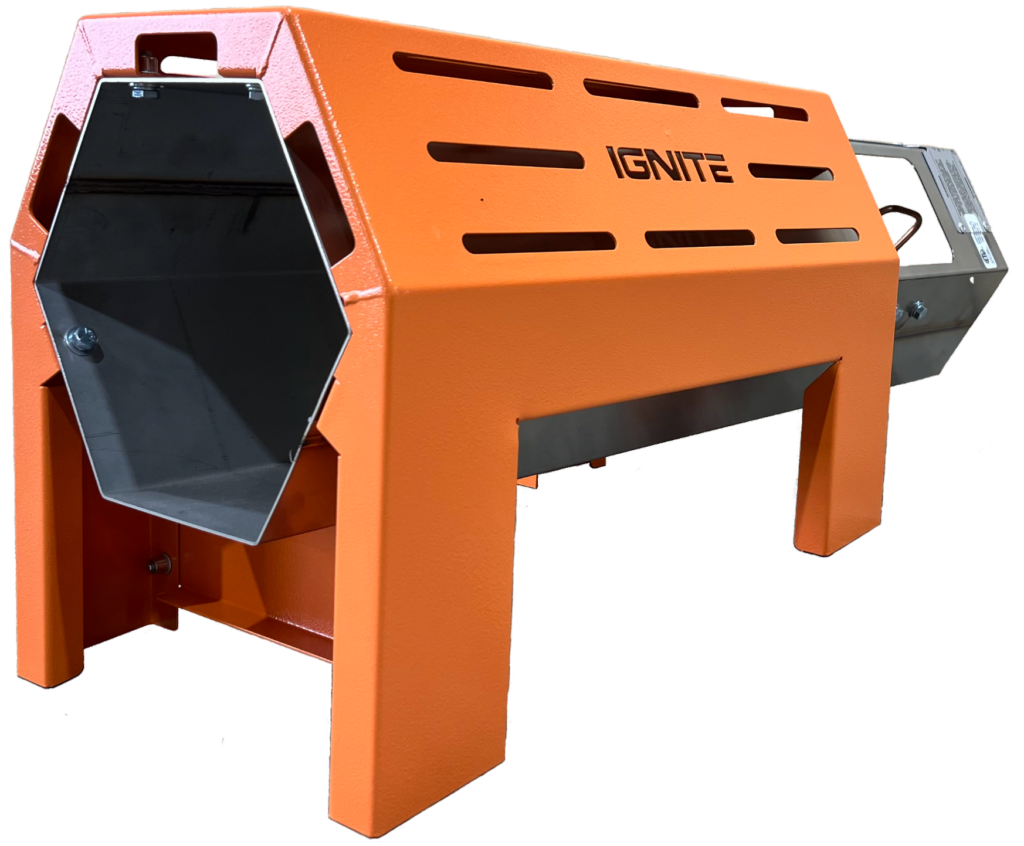

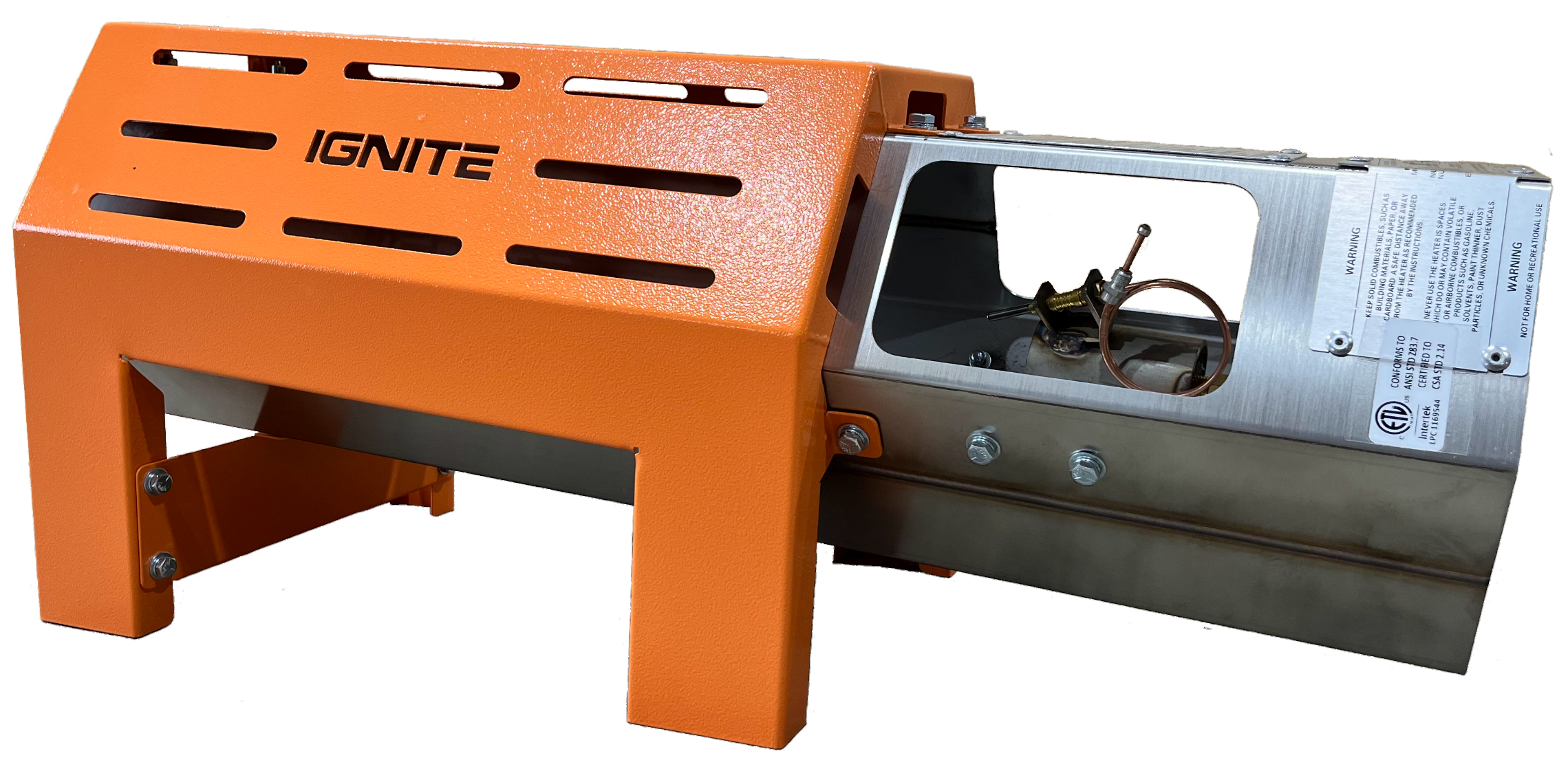

H-150 Portable Direct Fired Propane Heater

Compact yet capable, the H-150 is a direct-fired propane heater engineered for efficiency in tight spaces. Ideal for small-scale heating applications, this unit delivers high-output warmth while maintaining a compact footprint. The H-150 is easy to transport, simple to operate, and perfect for crews who need quick, effective heat without a bulky setup. Despite its size, it’s built with the same high standards as our larger models and it certified to meet cETLus safety standards.

Features

Lightweight Stainless Steel Structure
This portable heater features a lightweight yet robust stainless steel structure, combining durability with ease of mobility. Designed to withstand the demands of both indoor and outdoor environments, this heater is ideal for quick heating solutions wherever propane gas is available. Its corrosion-resistant frame ensures longevity and consistent performance under varying conditions.
Built In Safety Valve And Thermocouple
Safety is a priority with our portable heater, which includes a built-in safety valve and thermocouple. This dual feature automatically shuts off the gas supply if the flame goes out or if a drop in temperature is detected, preventing gas leaks and potential hazards. It’s an essential safeguard that ensures your heating is safe and reliable, giving you peace of mind in any setting.
Adjustable Regulator With 25 ft Hose
Maximize control and reach with our portable heater that includes a 20 PSI adjustable regulator and a 25 ft hose assembly. This setup allows for precise control over gas flow and pressure, ensuring optimal performance and fuel efficiency. The extended hose length provides great flexibility in placement, making it easier to spread warmth exactly where it’s needed, even in expansive settings.
No Power Required

Enjoy the ultimate convenience with our portable heater that operates without the need for electrical power. This feature makes it perfect for use in remote locations or during power outages, providing reliable heating by utilizing propane. Its independence from electrical sources ensures that you can stay warm anywhere, anytime.

Specifications

Fuel Type
Propane Gas (Incl. 25' Hose / 0-20 PSI Regulator)
Input / Hr
Min: 50,000 BTU / 15 kW
Max: 150,000 BTU / 44 kW
Fuel Consumption / Hr
2.3 - 6.9 lbs / 1.0 - 3.1 kg
Fuel Pressure
5 - 20 PSI / 34.5 - 137 kPa
Standard Hose Length
25 ft / 7.6 m
Ignition
Manual
Power Requirements
None
Air Outlet Diameter
8" / 20 cm
Weight
19.5 lbs / 8.9 kg
Dimensions
30" x 11.5" x 14" / 76 x 29 x 36 cm
Approvals
cETLus

Documents

H-150 User Instructions Manual

H-150 User Instructions Manual (FR)

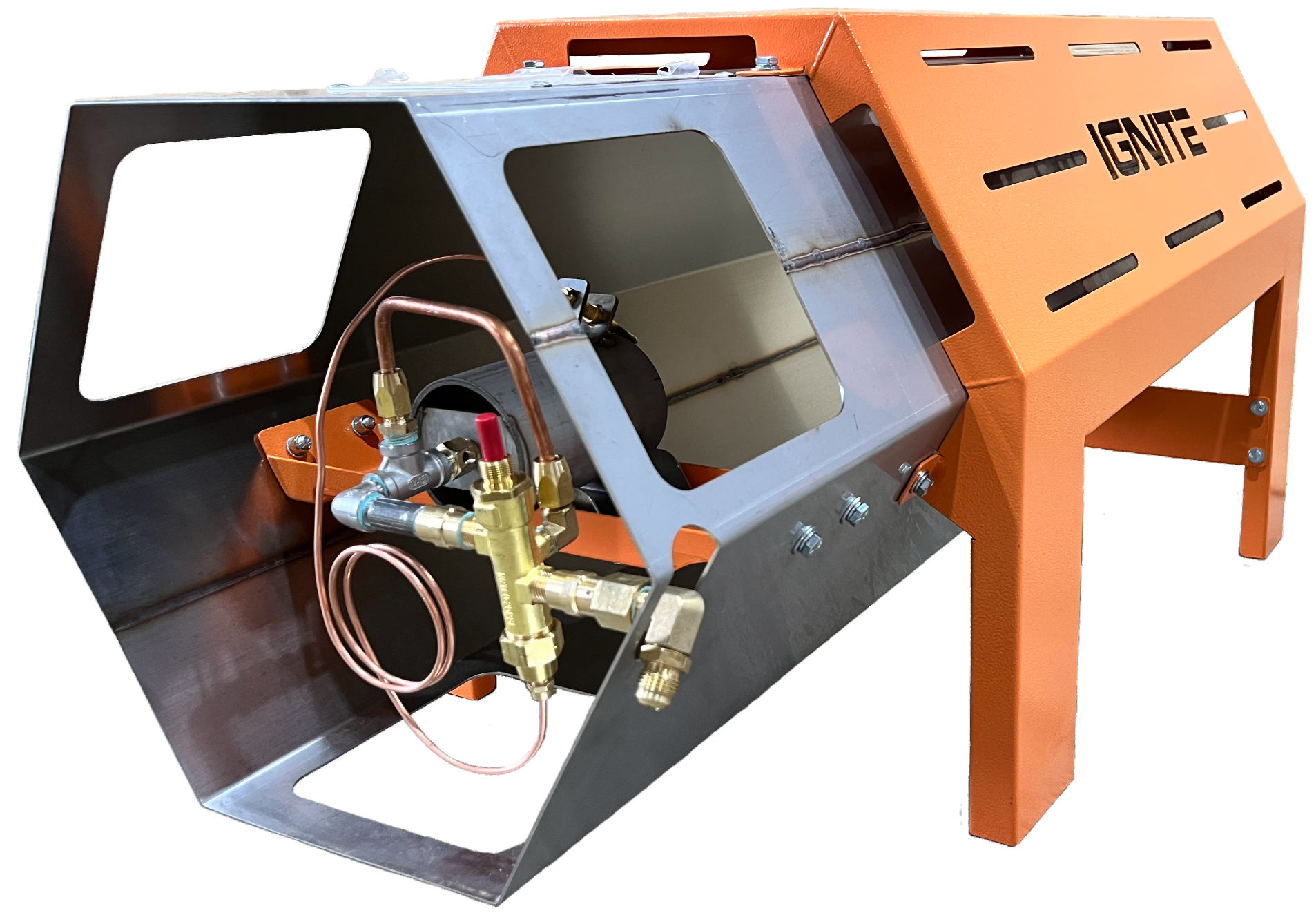

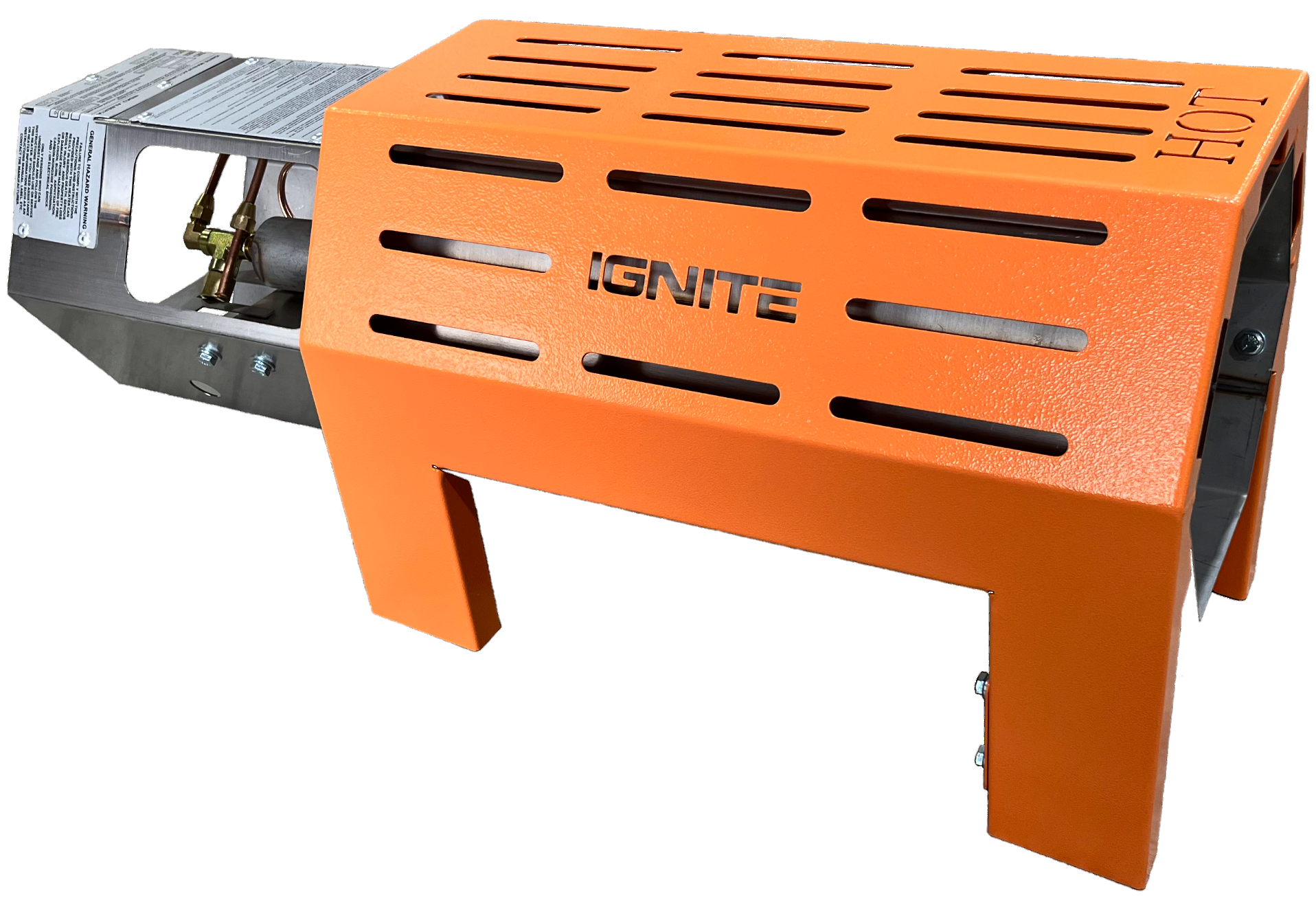

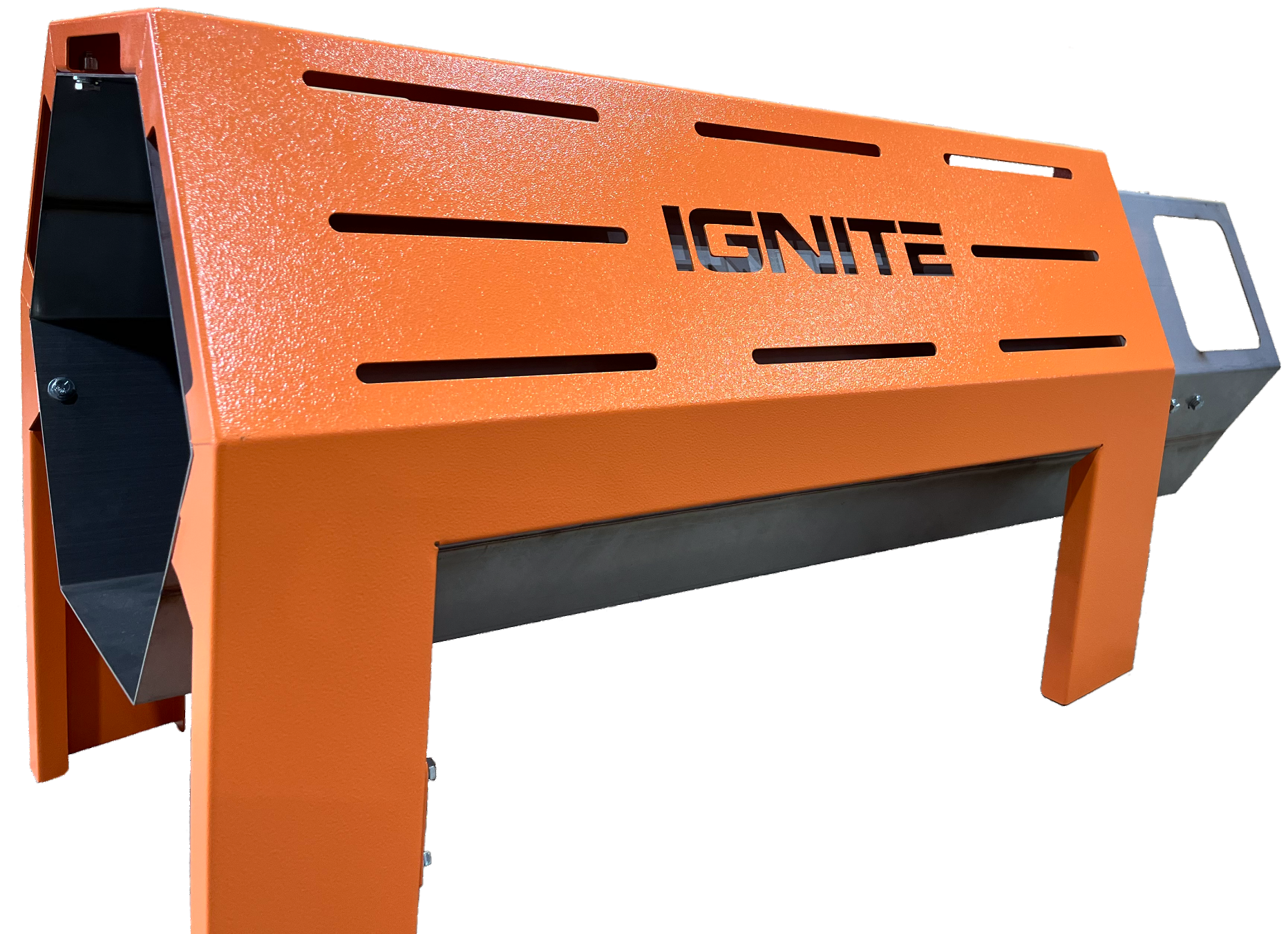

H-375 Portable Direct Fired Propane Heater

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Fusce turpis augue, dignissim commodo varius at, pellentesque sit amet quam. Suspendisse potenti. Aliquam sit amet venenatis arcu, et gravida lacus. Morbi vehicula at enim quis porttitor. Sed dictum lacus sit amet turpis viverra mattis. In at elementum erat. Sed tincidunt semper augue, et hendrerit elit facilisis a.

Features

Lightweight Stainless Steel Structure
This portable heater features a lightweight yet robust stainless steel structure, combining durability with ease of mobility. Designed to withstand the demands of both indoor and outdoor environments, this heater is ideal for quick heating solutions wherever propane gas is available. Its corrosion-resistant frame ensures longevity and consistent performance under varying conditions.
Built In Safety Valve And Thermocouple
Safety is a priority with our portable heater, which includes a built-in safety valve and thermocouple. This dual feature automatically shuts off the gas supply if the flame goes out or if a drop in temperature is detected, preventing gas leaks and potential hazards. It’s an essential safeguard that ensures your heating is safe and reliable, giving you peace of mind in any setting.
Adjustable Regulator With 25 ft Hose
Maximize control and reach with our portable heater that includes a 20 PSI adjustable regulator and a 25 ft hose assembly. This setup allows for precise control over gas flow and pressure, ensuring optimal performance and fuel efficiency. The extended hose length provides great flexibility in placement, making it easier to spread warmth exactly where it’s needed, even in expansive settings.
No Power Required

Enjoy the ultimate convenience with our portable heater that operates without the need for electrical power. This feature makes it perfect for use in remote locations or during power outages, providing reliable heating by utilizing propane. Its independence from electrical sources ensures that you can stay warm anywhere, anytime.

Specifications

Fuel Type
Propane Gas (Incl. 25' Hose / 0-20 PSI Regulator)
Input / Hr
Min: 50,000 BTU / 15 kW
Max: 150,000 BTU / 44 kW
Fuel Consumption / Hr
2.3 - 6.9 lbs / 1.0 - 3.1 kg
Fuel Pressure
5 - 20 PSI / 34.5 - 137 kPa
Standard Hose Length
25 ft / 7.6 m
Ignition
Manual
Power Requirements
None
Air Outlet Diameter
8" / 20 cm
Weight
19.5 lbs / 8.9 kg
Dimensions
30" x 11.5" x 14" / 76 x 29 x 36 cm
Approvals
cETLus

Documents

H-150 User Instructions Manual

H-150 User Instructions Manual (FR)

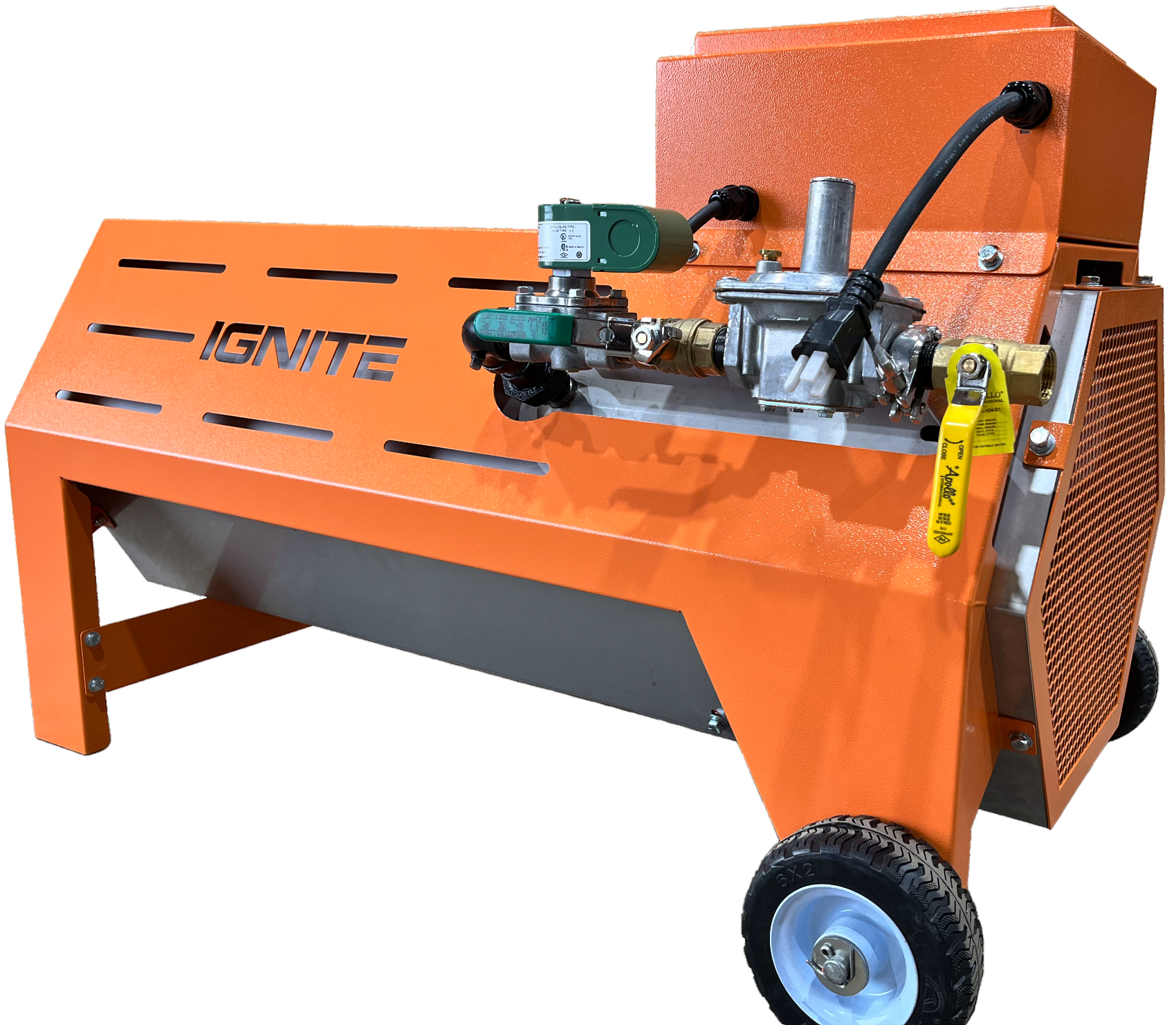

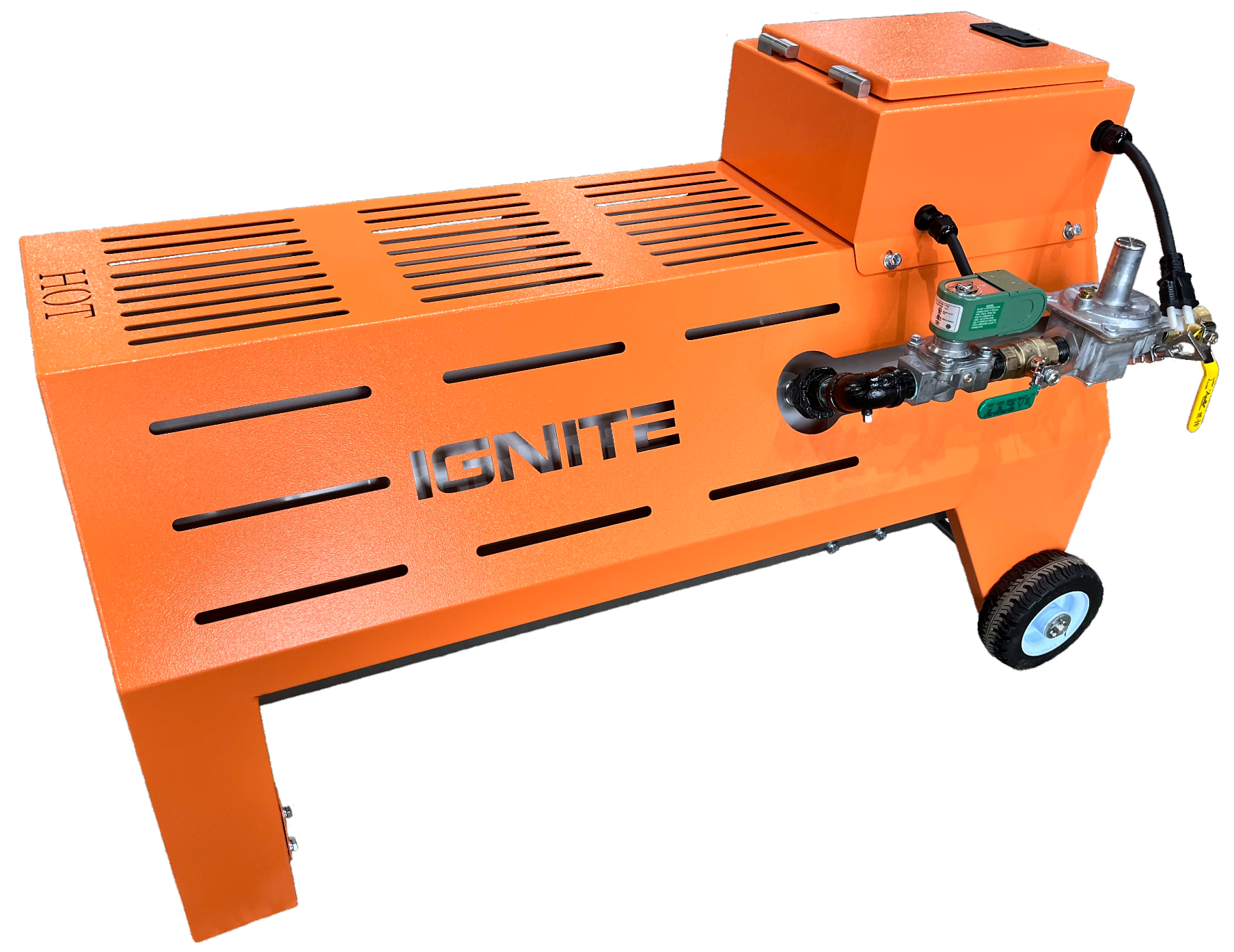

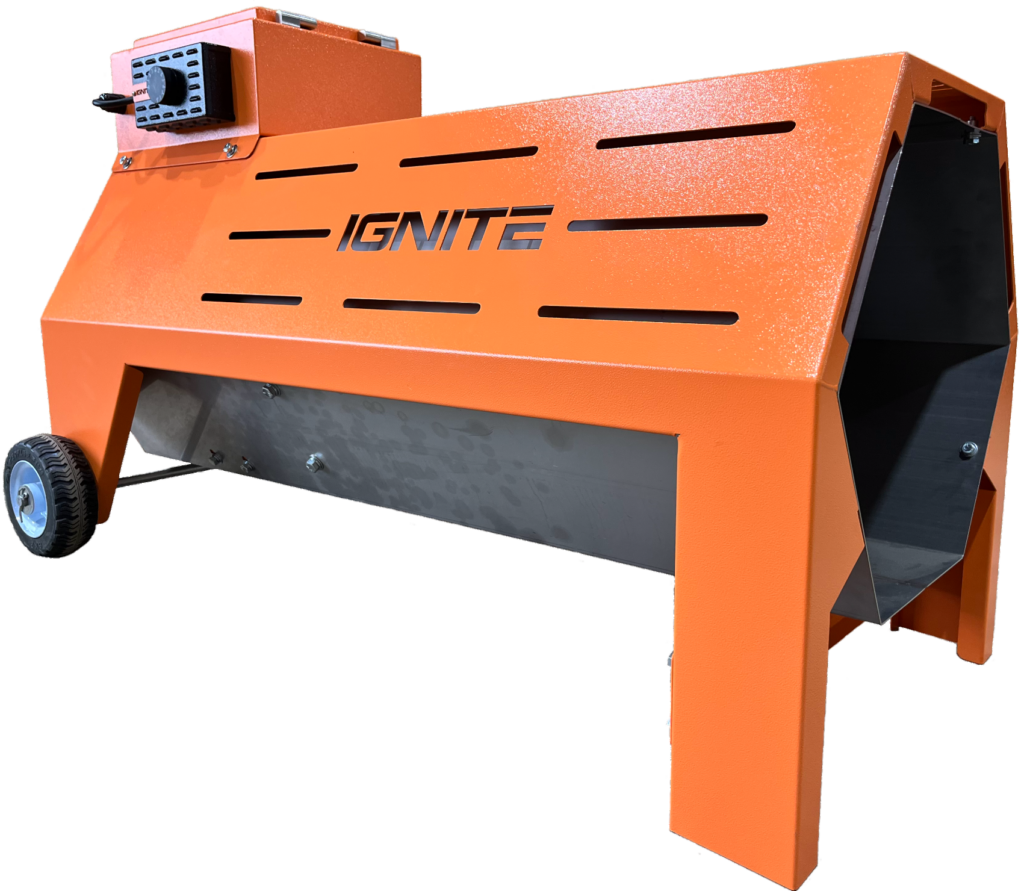

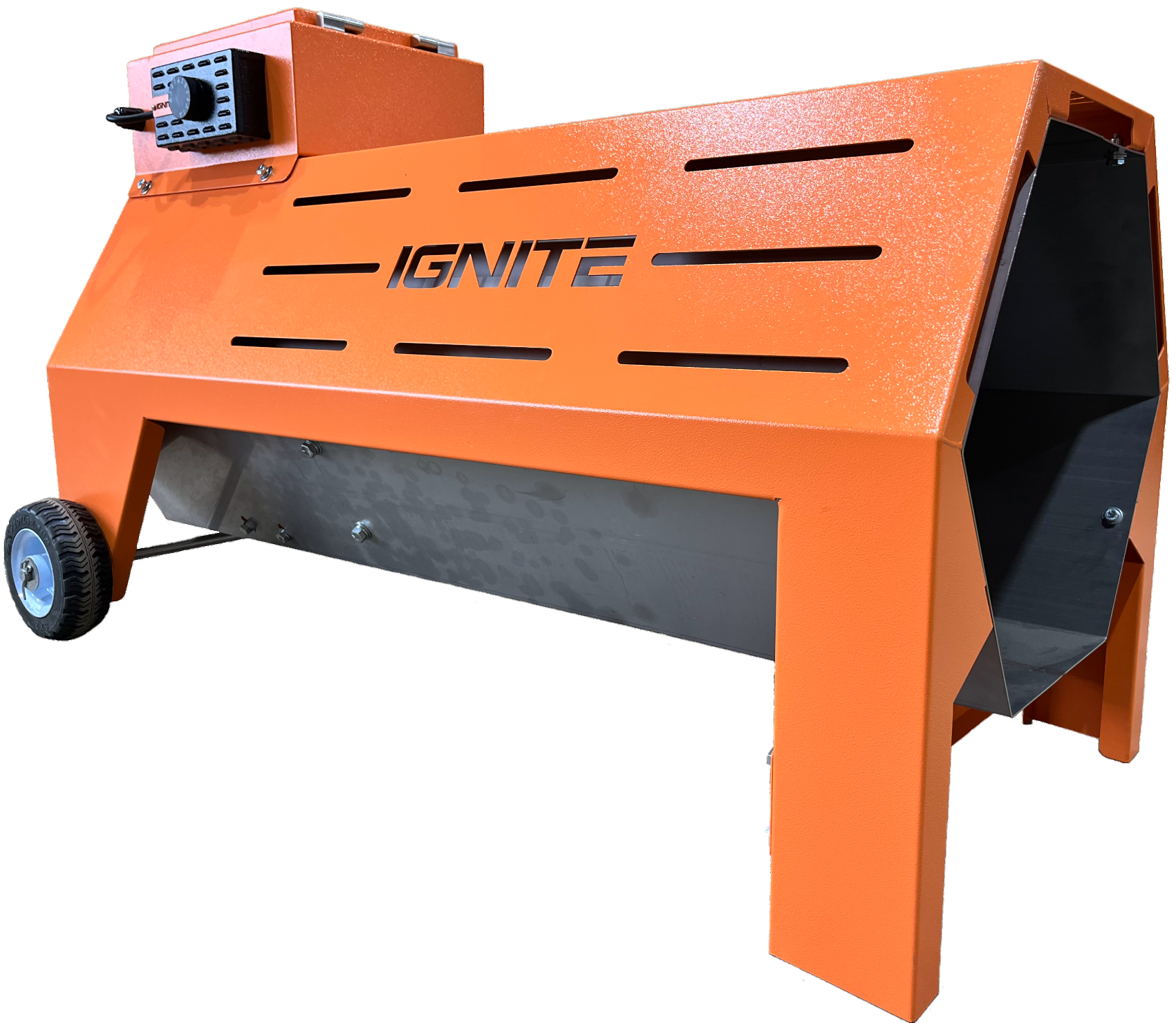

400DF Direct Fired Heater

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Fusce turpis augue, dignissim commodo varius at, pellentesque sit amet quam. Suspendisse potenti. Aliquam sit amet venenatis arcu, et gravida lacus. Morbi vehicula at enim quis porttitor. Sed dictum lacus sit amet turpis viverra mattis. In at elementum erat. Sed tincidunt semper augue, et hendrerit elit facilisis a.

Features

Lightweight Stainless Steel Structure
This portable heater features a lightweight yet robust stainless steel structure, combining durability with ease of mobility. Designed to withstand the demands of both indoor and outdoor environments, this heater is ideal for quick heating solutions wherever propane gas is available. Its corrosion-resistant frame ensures longevity and consistent performance under varying conditions.
Built In Safety Valve And Thermocouple
Safety is a priority with our portable heater, which includes a built-in safety valve and thermocouple. This dual feature automatically shuts off the gas supply if the flame goes out or if a drop in temperature is detected, preventing gas leaks and potential hazards. It’s an essential safeguard that ensures your heating is safe and reliable, giving you peace of mind in any setting.
Adjustable Regulator With 25 ft Hose
Maximize control and reach with our portable heater that includes a 20 PSI adjustable regulator and a 25 ft hose assembly. This setup allows for precise control over gas flow and pressure, ensuring optimal performance and fuel efficiency. The extended hose length provides great flexibility in placement, making it easier to spread warmth exactly where it’s needed, even in expansive settings.
No Power Required

Enjoy the ultimate convenience with our portable heater that operates without the need for electrical power. This feature makes it perfect for use in remote locations or during power outages, providing reliable heating by utilizing propane. Its independence from electrical sources ensures that you can stay warm anywhere, anytime.

Specifications

Fuel Type
Propane Gas (Incl. 25' Hose / 0-20 PSI Regulator)
Input / Hr
Min: 50,000 BTU / 15 kW
Max: 150,000 BTU / 44 kW
Fuel Consumption / Hr
2.3 - 6.9 lbs / 1.0 - 3.1 kg
Fuel Pressure
5 - 20 PSI / 34.5 - 137 kPa
Standard Hose Length
25 ft / 7.6 m
Ignition
Manual
Power Requirements
None
Air Outlet Diameter
8" / 20 cm
Weight
19.5 lbs / 8.9 kg
Dimensions
30" x 11.5" x 14" / 76 x 29 x 36 cm
Approvals
cETLus

Documents

H-150 User Instructions Manual

H-150 User Instructions Manual (FR)

Torches

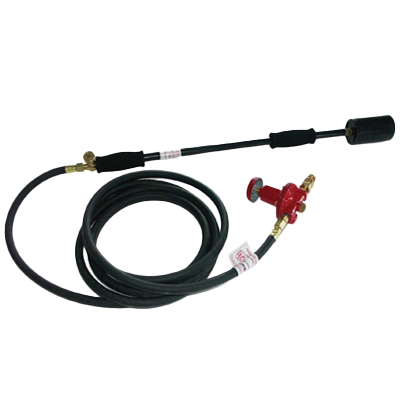

Liquid Propane Torch Kit

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Fusce turpis augue, dignissim commodo varius at, pellentesque sit amet quam. Suspendisse potenti. Aliquam sit amet venenatis arcu, et gravida lacus. Morbi vehicula at enim quis porttitor. Sed dictum lacus sit amet turpis viverra mattis. In at elementum erat. Sed tincidunt semper augue, et hendrerit elit facilisis a.

Features

Lightweight Stainless Steel Structure
This portable heater features a lightweight yet robust stainless steel structure, combining durability with ease of mobility. Designed to withstand the demands of both indoor and outdoor environments, this heater is ideal for quick heating solutions wherever propane gas is available. Its corrosion-resistant frame ensures longevity and consistent performance under varying conditions.
Built In Safety Valve And Thermocouple
Safety is a priority with our portable heater, which includes a built-in safety valve and thermocouple. This dual feature automatically shuts off the gas supply if the flame goes out or if a drop in temperature is detected, preventing gas leaks and potential hazards. It’s an essential safeguard that ensures your heating is safe and reliable, giving you peace of mind in any setting.
Adjustable Regulator With 25 ft Hose
Maximize control and reach with our portable heater that includes a 20 PSI adjustable regulator and a 25 ft hose assembly. This setup allows for precise control over gas flow and pressure, ensuring optimal performance and fuel efficiency. The extended hose length provides great flexibility in placement, making it easier to spread warmth exactly where it’s needed, even in expansive settings.
No Power Required

Enjoy the ultimate convenience with our portable heater that operates without the need for electrical power. This feature makes it perfect for use in remote locations or during power outages, providing reliable heating by utilizing propane. Its independence from electrical sources ensures that you can stay warm anywhere, anytime.

Specifications

Fuel Type
Liquid Propane Gas
Heat Capacity
550,000 BTU/Hr - 15 kW/Hr
Gas Pressure
5 - 30 PSI / 34.5 - 207 kPa
Structure
SCH 80 Pipe Coiled Head
Needle Valve
Gas Flo
Dimensions / Weight
29" x 4" / 4.75 lbs

COMPARE OUR HEATERS

Model
HO-400
HO-400R
HD-400
HD-400R
H-150
HT-TB1000 Trailblazer
Fuel Type
No.1 or No.2 Fuel Oil, Diesel, or Kerosene
No.1 or No.2 Fuel Oil, Diesel, or Kerosene
Natural Gas or Propane
Natural Gas or Propane
Propane (Incl. 25' Hose/0-20 PSI Regulator)
No.1 or No.2 Fuel Oil, Diesel, or Kerosene
Input / Hr
Min: 325,000 BTU / 95 kW
Max: 390,000 / 114 kW
Min: 325,000 BTU / 95 kW
Max: 390,000 / 114 kW
390,000 BTU / 114 kW
390,000 BTU/ 114 kW
Min: 50,000 BTU / 15 kW
Max: 150,000 / 44 kW
2 x HO-400R Heaters
Min: 325,000 BTU / 95 kW
Max: 390,000 BTU/ 114 kW
Fuel Consumption / Hr
3 US Ga. / 11.4 L
3 US Ga. / 11.4 L
Propane:
18 lbs / 8.2 kg
Natural Gas:
390 cf / 11 m³
Propane:
18 lbs / 8.2 kg
Natural Gas:
390 cf / 11 m³
2.3 - 6.9 lbs / 1.0 - 3.1 kg
7 US Ga. / 26.5 L (includes 2 heaters per genset)
Fuel Tank Capacity
48 US Ga. / 180 L
(16 Hr Run Time)
Optional:
60 US Ga. / 227 L
(20 Hr Run Time)
48 US Ga. / 180 L
(16 Hr Run Time)
Optional:
60 US Ga. / 227 L
(20 Hr Run Time) or
18 US Ga. / 447 L (39 Hr Run Time)
N/A
N/A
N/A
290 US Ga. / 1098 L (41 Hr Run Time)
Ignition
Riello Burner Direct Spark
Riello Burner Direct Spark
Riello Burner Direct Spark
Riello Burner Direct Spark
Manual
Riello Burner Direct Spark
Power Requirements
115 V / 15 A (10 A Draw)
115 V / 15 A (10 A Draw)
115 V / 15 A (10 A Draw)
115 V / 15 A (8 A Draw)
None
115 V / 15 A (8 A Draw)
Fan Motor / Air Circulation
3/4 HP / 2,500 CFM
(70.8 m³/min)
1 HP / 3,500 CFM
(99.1 m³/min)
3/4 HP / 2,500 CFM
(70.8 m³/min)
1 HP / 3,500 CFM
(99.1 m³/min)
N/A
2 HP / 7,000 CFM (298.2 m³/min)
Maximum Static Pressure
2.5" WC / 623 Pa
3.0" WC / 747 Pa
2.5" WC / 623 Pa
3.0" WC / 747 Pa
N/A
Dual 3.0" WC / 747 Pa
Standard Air Outlet
2 x 12" Dia
2 x 12" Dia
2 x 12" Dia
2 x 12" Dia
N/A
4 x 12"  Dia
Optional Air Outlet
1 x 16" Dia
1 x 16" Dia
1 x 16" Dia
1 x 16" Dia
N/A
2 x 16" Dia
Weight
580 lbs / 263 kg
600 lbs / 272 kg
460 lbs / 209 kg
480 lbs / 218 kg
19.5 lbs / 8.9 kg
5500 lbs / 2495 kg (empty)
Dimensions
70" x 30" x 52" /
178 x 76 x 132 cm
70" x 30" x 52" /
178 x 76 x 132 cm
70" x 30" x 52" /
178 x 76 x 132 cm
70" x 30" x 52" /
178 x 76 x 132 cm
30" x 11.5" x 14" /
76 x 29 x 36 cm
13' x 7.5' x 7' /
396 x 229 x 213 cm
Maximum Duct Temperature (Above Ambient)
290°F / 143 °C
290°F / 143 °C
290°F / 143 °C
290°F / 143 °C
N/A
290°F / 143 °C
Approvals
cETLus
cETLus
cETLus
cETLus
cETLus
CSA / ESA
